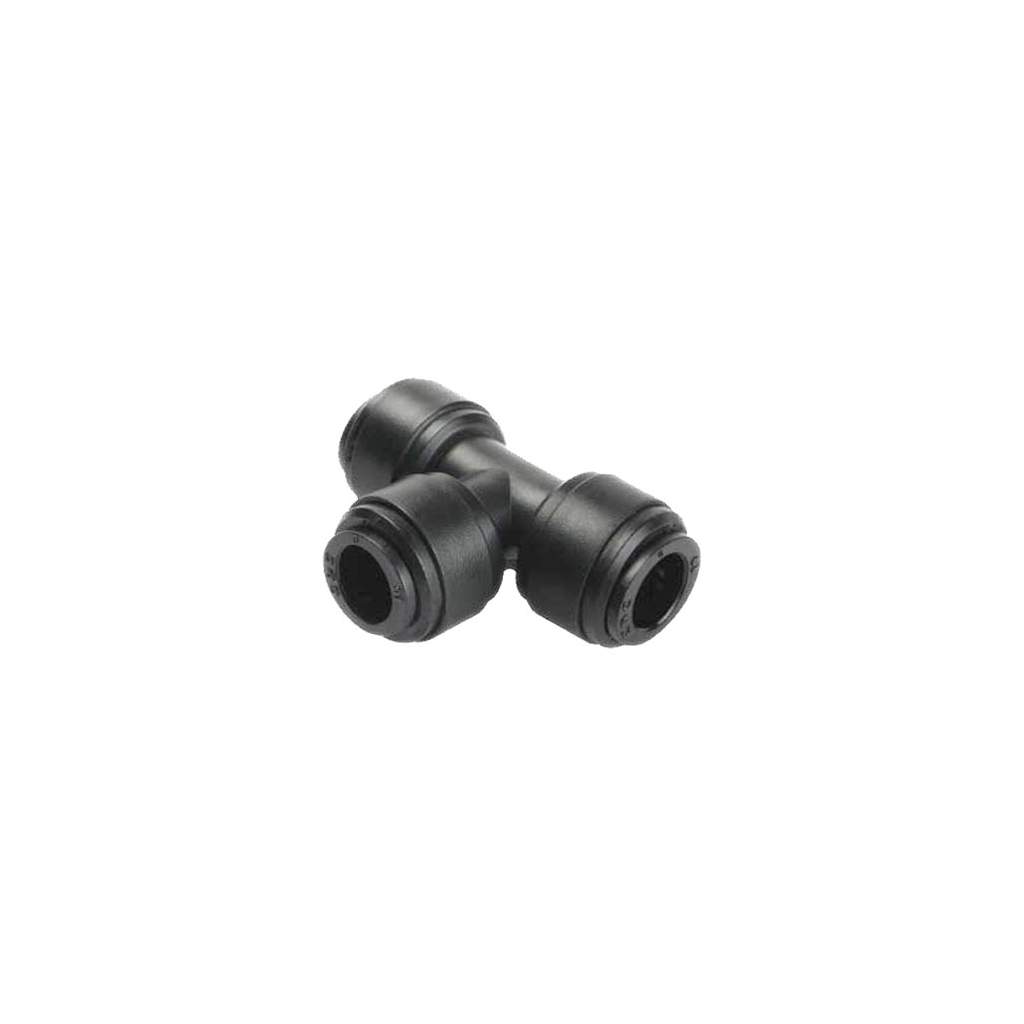

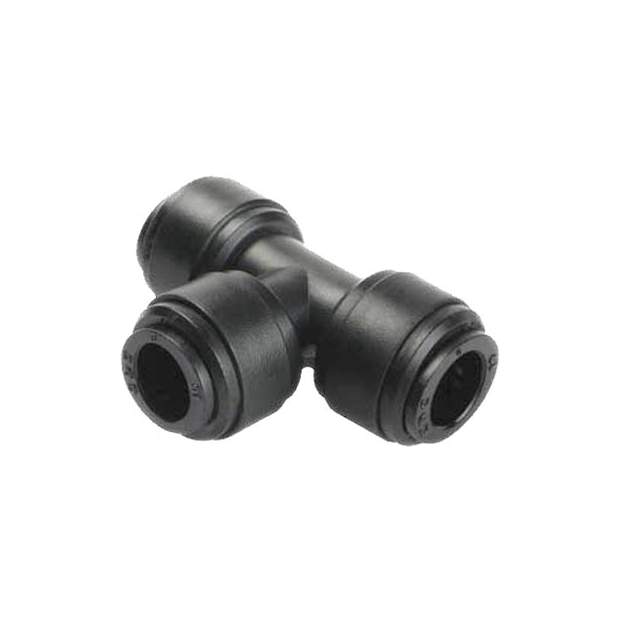

HUT T-Verbinder metrische Steckverbindung 4 bis 22mm (Reduzierung)

1,42 €

Inkl. gesetzlicher Ust. zzgl. Versand

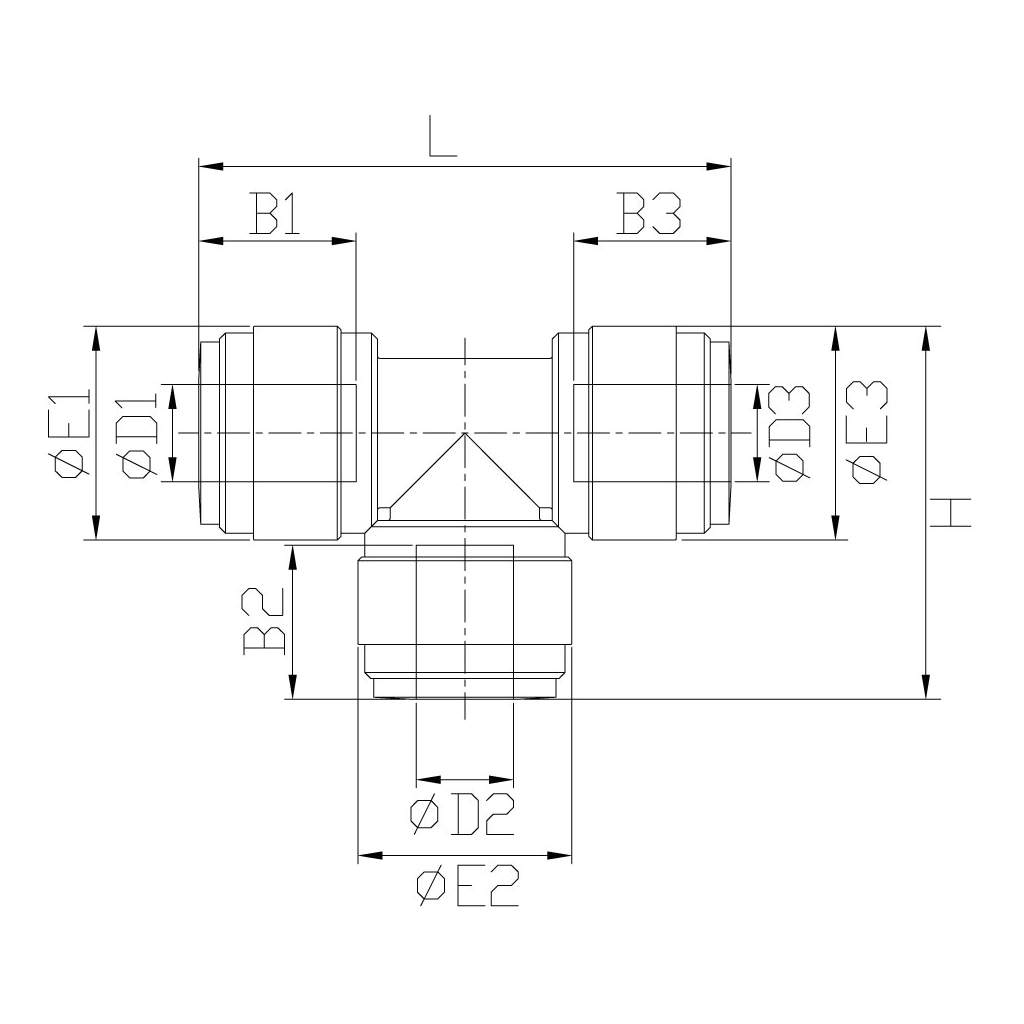

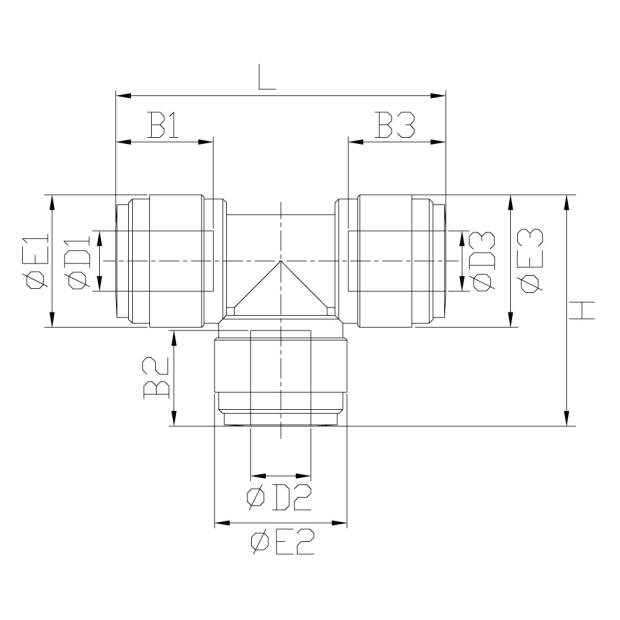

Varianten:	ØD1	ØD2	ØD3	B1	B2	B3	ØE1	ØE2	ØE3	H	L	Gewicht
HUT0404B	4mm	4mm	4mm	14,7mm	14,7mm	14,7mm	13,2mm	13,2mm	13,2mm	24,5mm	35,8mm	5,8g
HUT0606B	6mm	6mm	6mm	16,1mm	16,1mm	16,1mm	15,0mm	15,0mm	15,0mm	27,6mm	40,2mm	7,3g
HUT0808B	8mm	8mm	8mm	17,5mm	17,5mm	17,5mm	17,6mm	17,6mm	17,6mm	30,7mm	43,8mm	10,6g
HUT1010B	10mm	10mm	10mm	20,1mm	20,1mm	20,1mm	20,0mm	20,0mm	20,0mm	35,8mm	51,6mm	14,6g
HUT1212B	12mm	12mm	12mm	24,7mm	24,7mm	24,7mm	23,0mm	23,0mm	23,0mm	43,2mm	63,4mm	23,2g
HUT1515B	15mm	15mm	15mm	29,4mm	29,4mm	29,4mm	28,0mm	28,0mm	28,0mm	52,2mm	76,4mm	38,2g
HUT2222B	22mm	22mm	22mm	33,8mm	33,8mm	33,8mm	35,5mm	35,5mm	35,5mm	63,9mm	92,3mm	64,0g

Reduzierung der Steckverbindung:

Varianten:	ØD1	ØD2	ØD3	B1	B2	B3	ØE1	ØE2	ØE3	H	L	Gewicht
HUT100806B	10mm	8mm	6mm	20,1mm	16,1mm	17,5mm	20,0mm	15,0mm	20,0mm	32,1mm	48,6mm	15,6g
HUT100608B	10mm	6mm	8mm	20,1mm	16,1mm	17,5mm	20,0mm	15,0mm	20,0mm	32,1mm	48,6mm	15,6g
HUT100610B	10mm	6mm	10mm	20,1mm	16,1mm	20,1mm	20,0mm	15,0mm	20,0mm	32,1mm	48,7mm	12,0g
HUT121012B	12mm	10mm	12mm	24,7mm	20,1mm	24,7mm	23,0mm	23,0mm	23,0mm	42,5mm	63,4mm	24,2g
HUT221222B	22mm	12mm	22mm	33,8mm	24,7mm	33,8mm	35,5mm	23,0mm	35,5mm	55,8mm	83,0mm	50,3g
HUT221522B	22mm	15mm	22mm	33,8mm	30,4mm	33,8mm	35,5mm	28,0mm	35,5mm	61,0mm	87,0mm	57,1g
