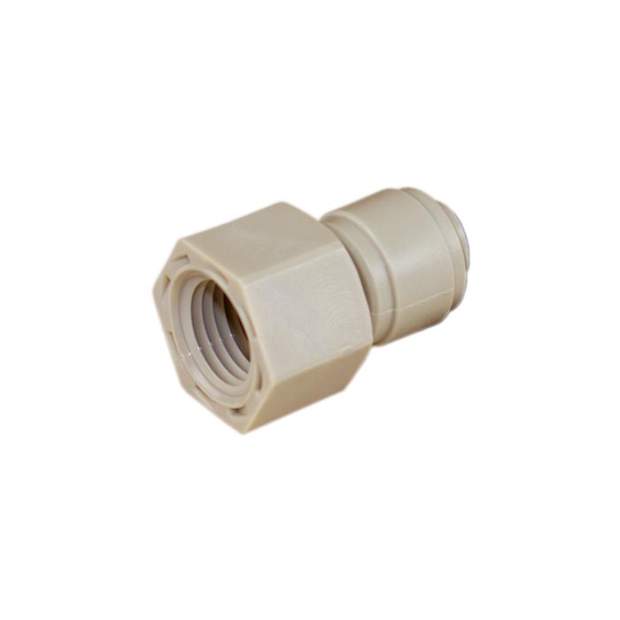

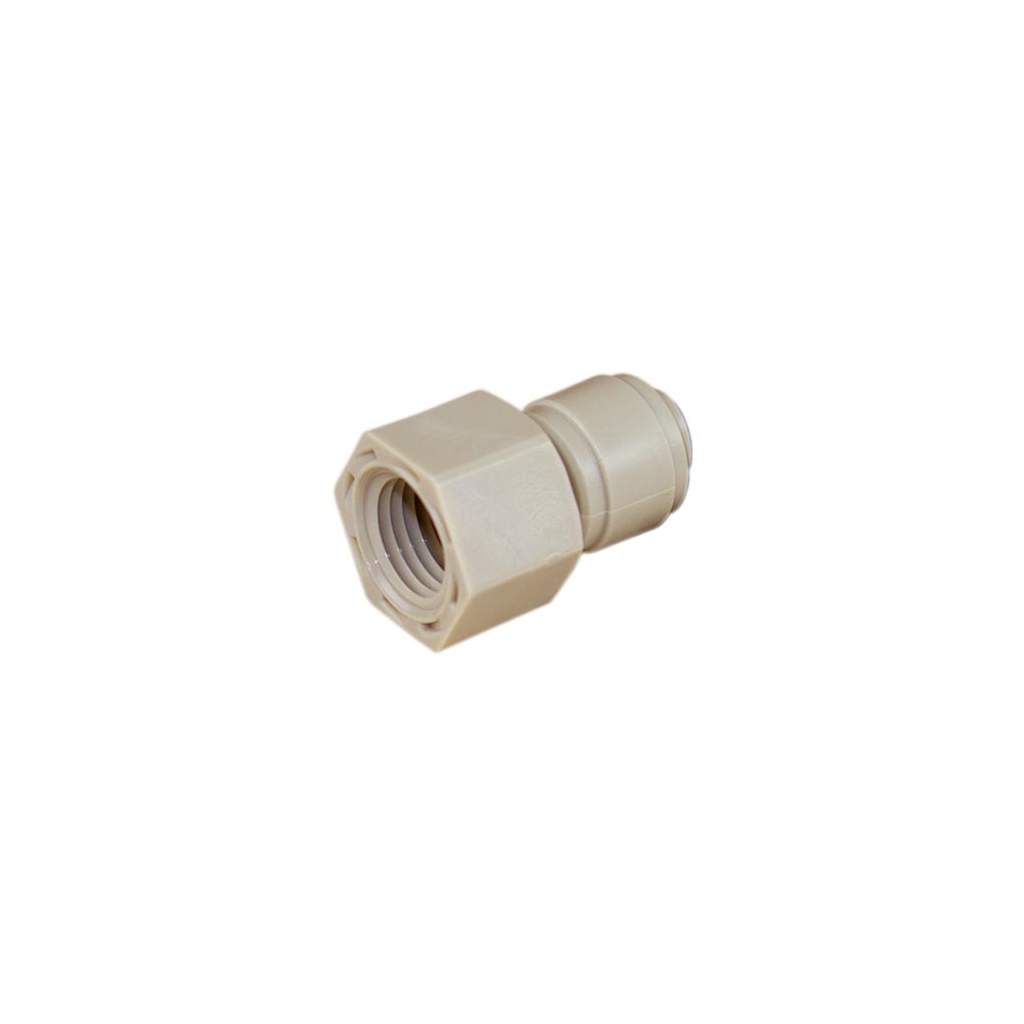

HCF-G Aufschraub-Verbinder zöllig mit Paralellgewinde (BSPP)

Artikelnummer: SVZ110200

ab 2,00 €

inkl. 19% USt. , zzgl. Versand

sofort verfügbar

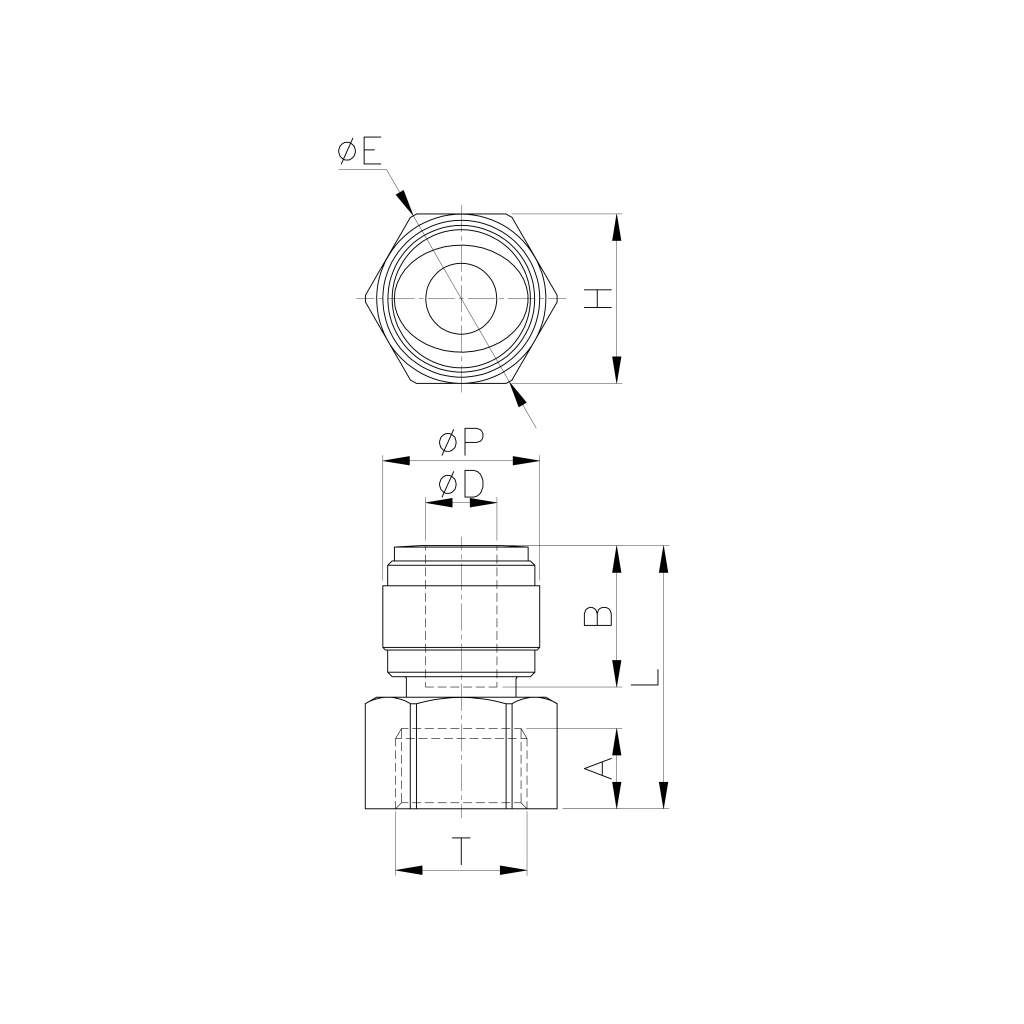

Varianten und Abmessungen:

HCF1/4-G03G: ØD = 1/4 Zoll, T (BSPP) = G3/8 Zoll, ØP = 15,0mm, L = 29,6mm, A = 9,0mm, B =16,9mm, H =24mm, ØE = 27,3mm, Gewicht 8,6g
HCF1/4-G04G: ØD = 1/4 Zoll, T (BSPP) = G1/2 Zoll, ØP = 20,0mm, L = 37,6mm, A =12,5mm, B =16,9mm, H =27mm, ØE = 30,0mm, Gewicht 13,9g
HCF1/4-G06G: ØD = 1/4 Zoll, T (BSPP) = G3/4 Zoll, ØP = 15,5mm, L = 34,2mm, A = 7,0mm, B = 16,9mm, H = 36,7mm, ØE = 41,6mm, Gewicht 36,3g (Innengewinde aus Messing)
HCF3/8-G03G: ØD = 3/8 Zoll, T (BSPP) = G3/8 Zoll, ØP = 20,0mm, L = 37,1mm, A = 9,0mm, B = 20,2mm, H = 24mm, ØE = 27,3mm, Gewicht 13,9g
HCF3/8-G04G: ØD = 3/8 Zoll, T (BSPP) = G1/2 Zoll, ØP = 20,0mm, L = 38,4mm, A = 12,5mm, B =20,2mm, H = 27mm, ØE = 30,0mm, Gewicht 13,4g
HCF3/8-G05G: ØD = 3/8 Zoll, T (BSPP) = G5/8 Zoll, ØP = 20,0mm, L = 38,2mm, A = 13,5mm, B = 20,2mm, H = 29mm, ØE = 32,0mm, Gewicht 14,8g
HCF3/8-G06G: ØD = 3/8 Zoll, T (BSPP) = G3/4 Zoll, ØP = 20,0mm, L = 37,0mm, A = 7,0mm, B = 20,2mm, H = 36,7mm, ØE = 41,6mm, Gewicht 39,3g (Innengewinde aus Messing)
HCF1/2-G04G: ØD = 1/2 Zoll, T (BSPP) = G1/2 Zoll, ØP = 23,0mm, L = 41,9mm, A = 12,5mm, B = 25,1mm, H = 27mm, ØE = 30,0mm, Gewicht 15,5g

Spezielle Varianten für Wasser- und Getränkespender:

HCF5/16-G05G-H: ØD = 5/16 Zoll, T (BSPP) = G5/8 Zoll, ØP = 20,0mm, L = 34,8mm, A = 9,5mm, B = 17,5mm, H = 28mm, ØE = 30,4mm, Gewicht 13,0g
HCF3/8-G04G-H: ØD = 3/8 Zoll, T (BSPP) = G1/2 Zoll, ØP = 20,0mm, L = 34,2mm, A = 9,0mm, B = 20,2mm, H = 25mm, ØE = 27,5mm, Gewicht 10,7g
HCF3/8-G05G-H: ØD = 3/8 Zoll, T (BSPP) = G5/8 Zoll, ØP = 20,0mm, L = 35,2mm, A = 9,5mm, B = 20,2mm, H = 28mm, ØE = 30,4mm, Gewicht 13,2g
