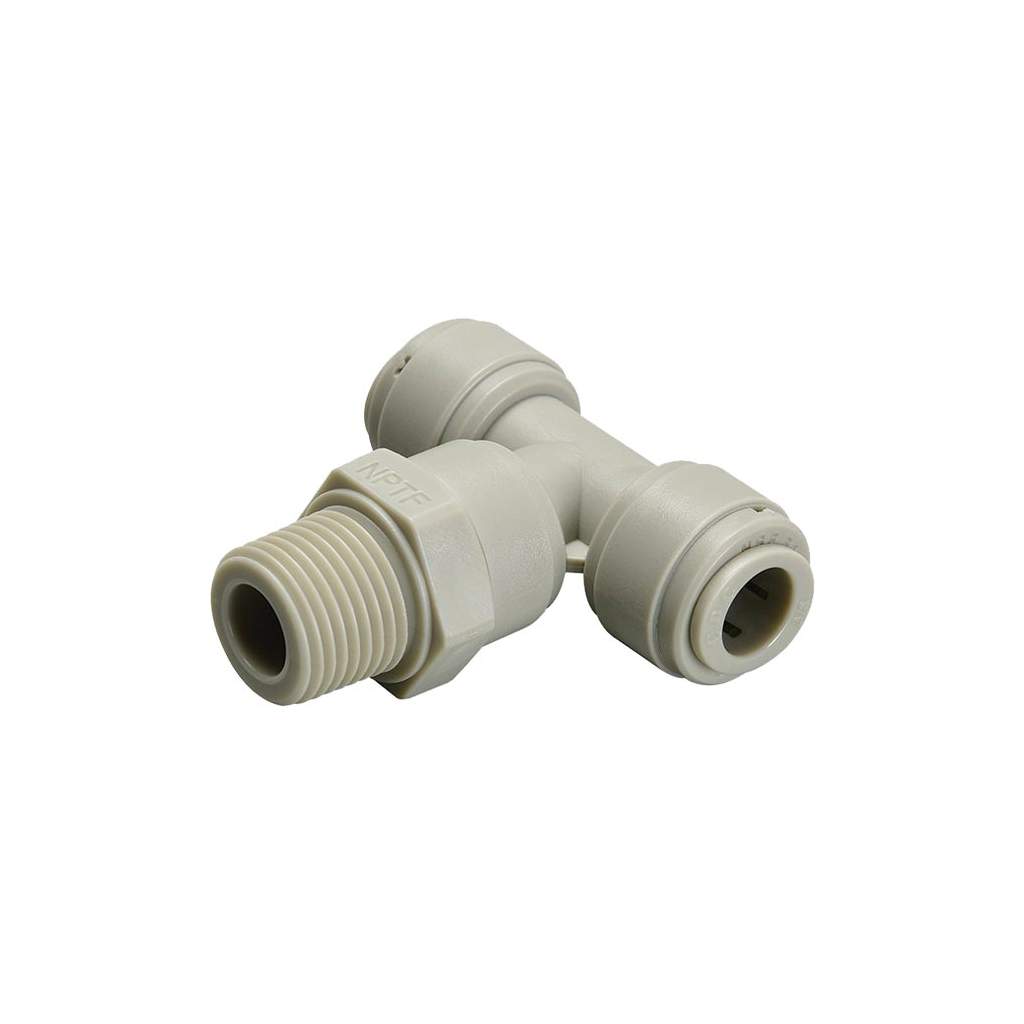

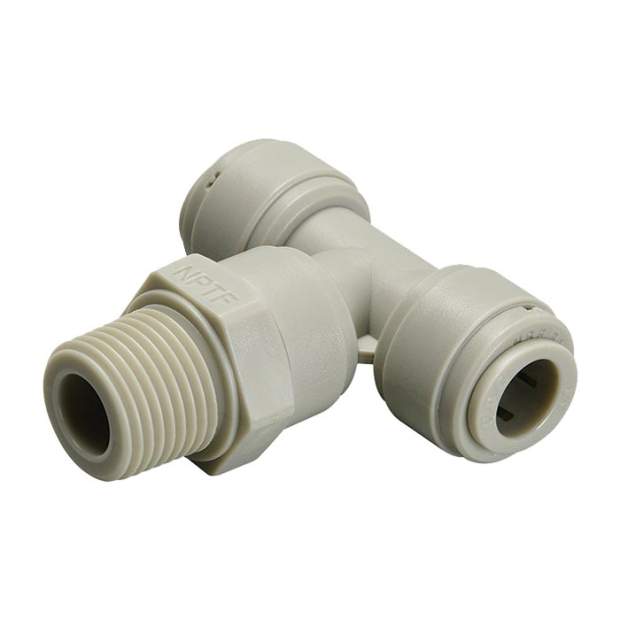

HRPT-N T-Einschraub-Verbinder NPTF-Kegelgewinde mittig zöllige Steckverbindung

  • Einschraubverbinder mit drehbarer Steckverbindung
  • 1/8, 1/4, 3/8 oder 1/2 Zoll NPTF-Kegelgewinde
  • 5/32, 1/4, 5/16, 3/8 oder 1/2 Zoll Steckverbindung
  • Für Wasser, Flüssigkeiten, Getränke und Druckluft
  • Material POM sowie Dichtung aus EPDM
  • Temperaturbereich 1°C bis 98°C
  • Druckfestigkeit 20 bar (bis 5/16 Zoll), 16 bar (bis 3/8 Zoll), 14bar (1/2 Zoll)
  • NSF- und ACS-Zertifizierung, Lebensmittelzulassung, W270 KTW
2,30 €

Inkl. gesetzlicher Ust. zzgl. Versand



  • Steckverbindung:
  • Außengewinde:

Dieser Artikel hat Variationen. Wählen Sie bitte die gewünschte Variation aus.

Sofort verfügbar

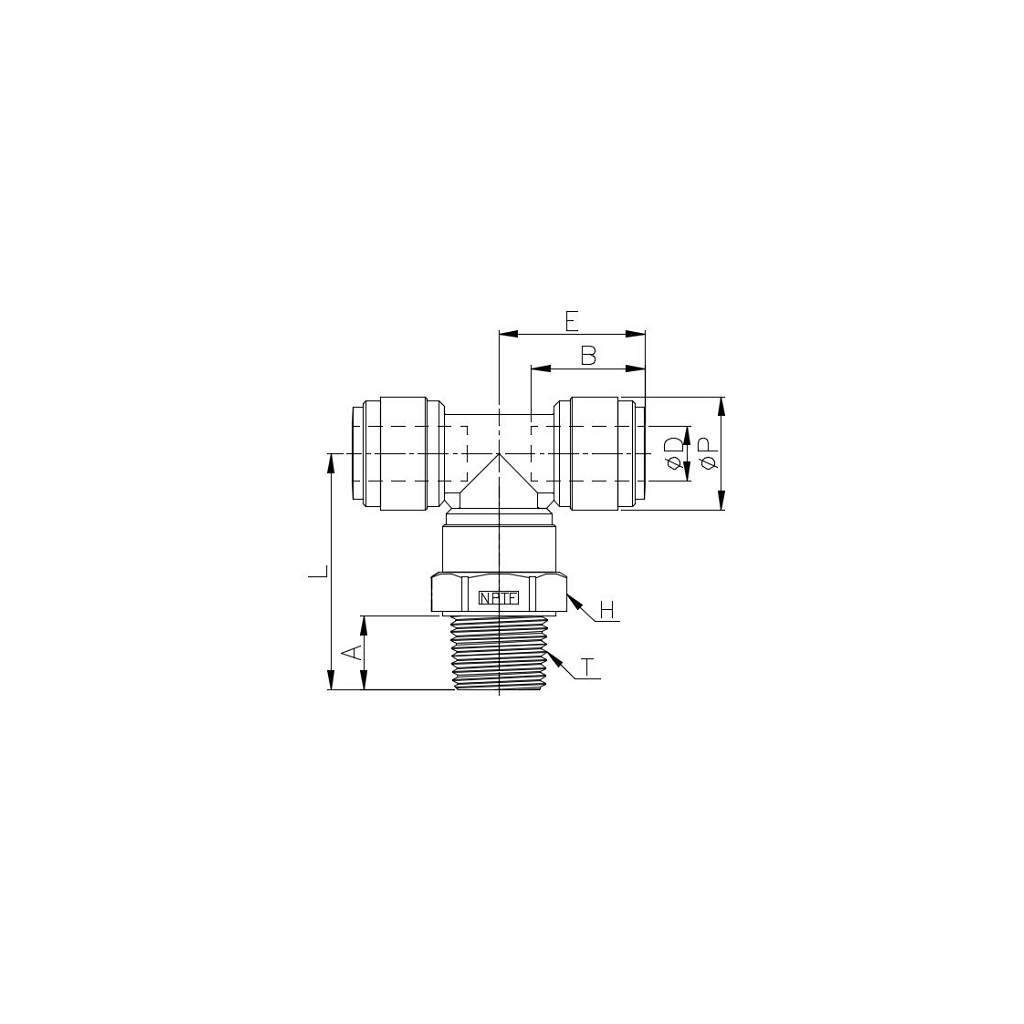

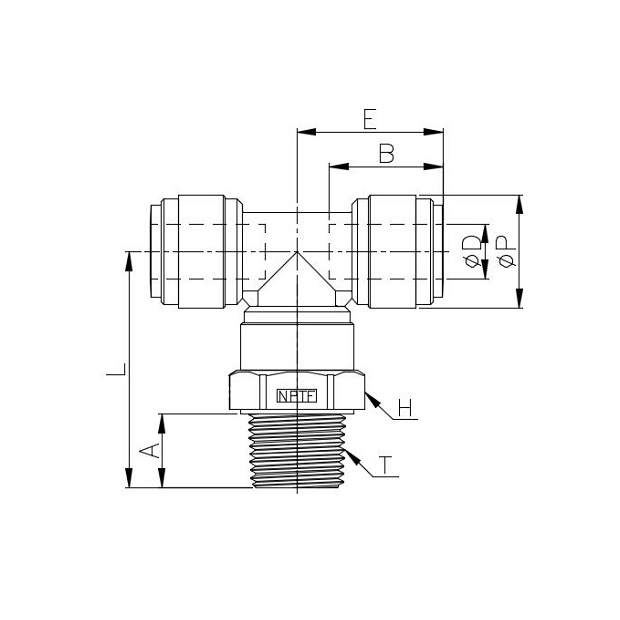

Varianten und Abmessungen:


  • HRPT5/32-N01G: ØD = 5/32 Zoll, T (NPTF) = N1/8 Zoll, ØP = 13,2mm, A = 9,1mm, B = 14,7mm, E = 17,8mm, H = 15,8mm (5/8 Zoll), L = 29,7mm, Gewicht = 8,1g
  • HRPT5/32-N02G: ØD = 5/32 Zoll, T (NPTF) = N1/4 Zoll, ØP = 13,2mm, A = 13,2mm, B = 14,7mm, E = 17,9mm, H = 15,8mm (5/8 Zoll), L = 33,8mm, Gewicht = 8,9g
  • HPRT1/4-N01G: ØD = 1/4 Zoll, T (NPTF) = N1/8 Zoll, ØP = 15,5mm, A = 9,1mm, B = 16,9mm, E = 21,0mm, H = 17,46mm (11/16 Zoll), L = 32,8mm, Gewicht = 10,2g
  • HPRT1/4-N02G: ØD = 1/4 Zoll, T (NPTF) = N1/4 Zoll, ØP = 15,5mm, A = 13,2mm, B = 16,9mm, E = 21,0mm, H = 17,46mm (11/16 Zoll), L = 36,9mm, Gewicht = 11,3g
  • HPRT5/16-N01G: ØD = 5/16 Zoll, T (NPTF) = N1/8 Zoll, ØP = 17,6mm, A = 9,1mm, B = 17,5mm, E = 21,9mm, H = 19,0mm (3/4 Zoll), L = 33,8mm, Gewicht = 13,6g
  • HPRT5/16-N02G: ØD = 5/16 Zoll, T (NPTF) = N1/4 Zoll, ØP = 17,6mm, A = 13,2mm, B = 17,5mm, E = 21,9mm, H = 19,0mm (3/4 Zoll), L = 37,9mm, Gewicht = 14,4g
  • HPRT5/16-N03G: ØD = 5/16 Zoll, T (NPTF) = N3/8 Zoll, ØP = 17,6mm, A = 13,8mm, B = 17,5mm, E = 21,9mm, H = 19,0mm (3/4 Zoll), L = 38,5mm, Gewicht = 15,4g
  • HPRT3/8-N02G: ØD = 3/8 Zoll, T (NPTF) = N1/4 Zoll, ØP = 20,0mm, A = 13,2mm, B = 20,2mm, E = 25,9mm, H = 21,4mm (27/32 Zoll), L = 41,9mm, Gewicht = 20,2g
  • HPRT3/8-N03G: ØD = 3/8 Zoll, T (NPTF) = N3/8 Zoll, ØP = 20,0mm, A = 13,0mm, B = 20,2mm, E = 25,9mm, H = 21,4mm (27/32 Zoll), L = 41,8mm, Gewicht = 20,4g
  • HPRT1/2-N03G: ØD = 1/2 Zoll, T (NPTF) = N3/8 Zoll, ØP = 23,0mm, A = 13,8mm, B = 25,1mm, E = 31,9mm, H = 23,8mm (15/16 Zoll), L = 48,5mm, Gewicht = 29,8g
  • HPRT1/2-N04G: ØD = 1/2 Zoll, T (NPTF) = N1/2 Zoll, ØP = 23,0mm, A = 17,8mm, B = 25,1mm, E = 31,9mm, H = 23,8mm (15/16 Zoll), L = 51,5mm, Gewicht = 32,4g
Hersteller: FLUIDFIT
Kategorie: Fluidtechnik
Artikelnummer: SVZ120800
