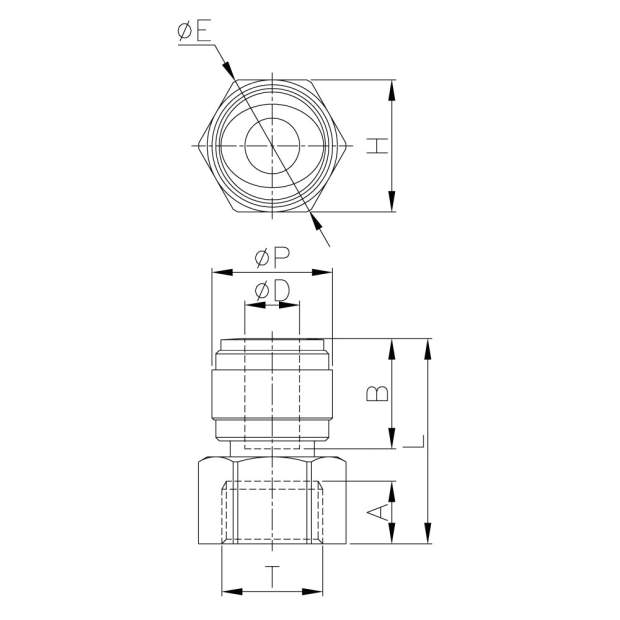

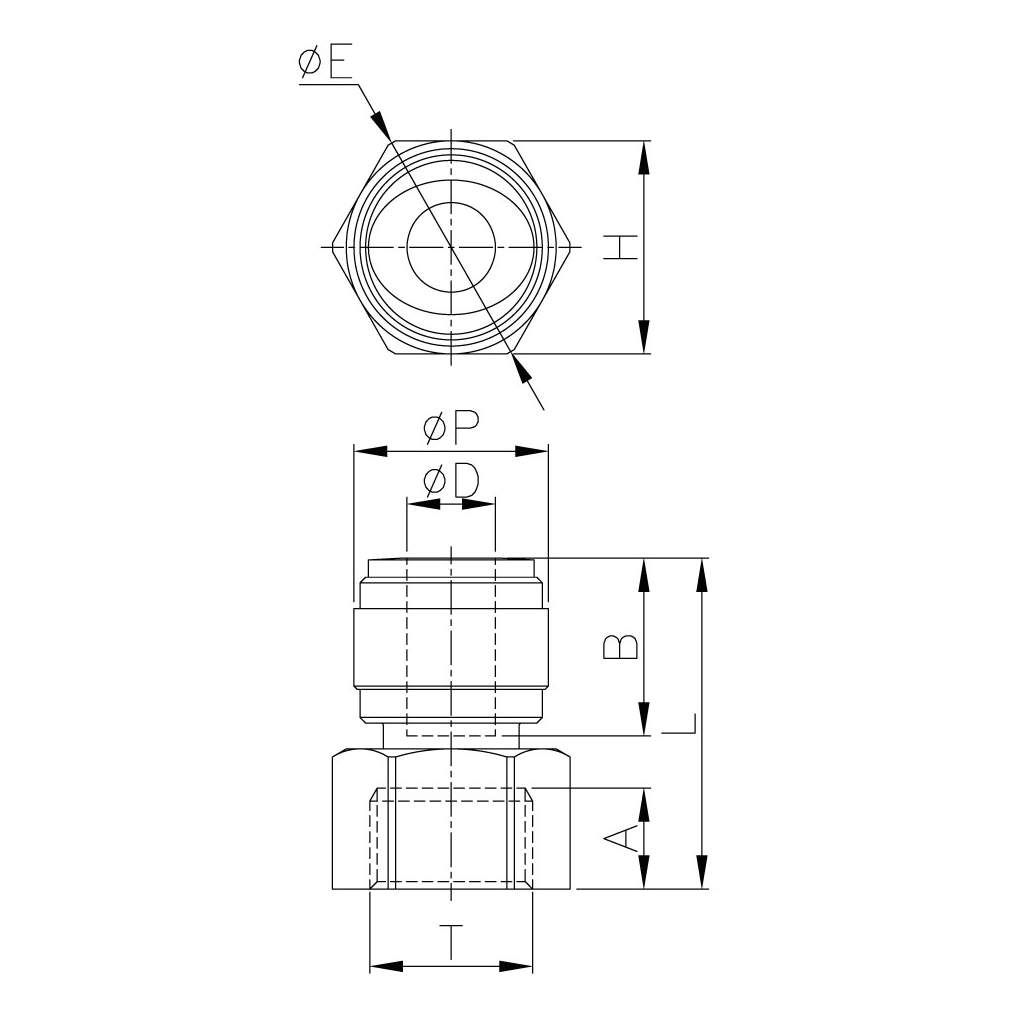

Varianten: | ØD | T (BSPP) | ØP | L | A | B | H | ØE | Gewicht |
---|---|---|---|---|---|---|---|---|---|
HCF04G01B | 4mm | G1/8 Zoll | 17,6mm | 26,9mm | 6,0mm | 14,7mm | 17,0mm | 19,2mm | 6,6g |
HCF06G01B | 6mm | G1/8 Zoll | 17,6mm | 27,1mm | 6,0mm | 16,1mm | 17,0mm | 19,2mm | 6,1g |
HCF06G02B | 6mm | G1/4 Zoll | 17,6mm | 29,1mm | 8,5mm | 16,1mm | 19,0mm | 21,5mm | 7,0g |
HCF06G03B | 6mm | G3/8 Zoll | 15,0mm | 29,6mm | 9,0mm | 16,1mm | 24,0mm | 27,3mm | 8,9g |
HCF06G06B | 6mm | G3/4 Zoll (Messing) | 15,5mm | 34,2mm | 7,0mm | 16,1mm | 36,7mm | 41,6mm | 37,6g |
HCF08G01B | 8mm | G1/8 Zoll | 17,6mm | 27,5mm | 6,0mm | 17,5mm | 17,0mm | 19,2mm | 6,0g |
HCF08G02B | 8mm | G1/4 Zoll | 17,6mm | 29,5mm | 8,5mm | 17,5mm | 19,0mm | 21,5mm | 6,7g |
HCF08G03B | 8mm | G3/8 Zoll | 17,6mm | 31,0mm | 9,0mm | 17,5mm | 24,0mm | 27,3mm | 9,7g |
HCF08G04B | 8mm | G1/2 Zoll | 20,0mm | 38,0mm | 12,5mm | 17,5mm | 27,0mm | 30,0mm | 13,8g |
HCF08G06B | 8mm | G3/4 Zoll (Messing) | 20,0mm | 36,6mm | 10,0mm | 17,5mm | 36,7mm | 41,6mm | 39,2g |
HCF10G02B | 10mm | G1/4 Zoll | 23,0mm | 34,5mm | 8,5mm | 20,1mm | 19,0mm | 21,5mm | 10,8g |
HCF10G03B | 10mm | G3/8 Zoll | 23,0mm | 37,0mm | 9,0mm | 20,1mm | 24,0mm | 27,3mm | 13,7g |
HCF10G04B | 10mm | G1/2 Zoll | 20,0mm | 38,3mm | 12,5mm | 20,1mm | 27,0mm | 30,0mm | 13,3g |
HCF10G05B | 10mm | G5/8 Zoll | 20,0mm | 38,1mm | 13,5mm | 20,1mm | 29,0mm | 32,0mm | 14,8g |
HCF10G06B | 10mm | G3/4 Zoll (Messing) | 20,0mm | 36,9mm | 10,0mm | 20,1mm | 36,7mm | 41,6mm | 38,6g |
HCF12G02B | 12mm | G1/4 Zoll | 23,0mm | 35,2mm | 8,5mm | 24,7mm | 19,0mm | 21,5mm | 10,3g |
HCF12G03B | 12mm | G3/8 Zoll | 23,0mm | 37,7mm | 9,0mm | 24,7mm | 24,0mm | 27,3mm | 13,0g |
HCF12G04B | 12mm | G1/2 Zoll | 23,0mm | 41,7mm | 12,5mm | 24,7mm | 27,0mm | 30,0mm | 15,4g |
HCF15G04B | 15mm | G1/2 Zoll | 28,0mm | 46,2mm | 12,5mm | 29,4mm | 27,0mm | 30,0mm | 20,1g |
HCF15G06B | 15mm | G3/4 Zoll | 28,0mm | 45,4mm | 12,0mm | 29,4mm | 33,0mm | 37,0mm | 25,1g |
Hersteller: | FLUIDFIT |
Kategorie: | Fluidtechnik |
Artikelnummer: | SVM100400 |
