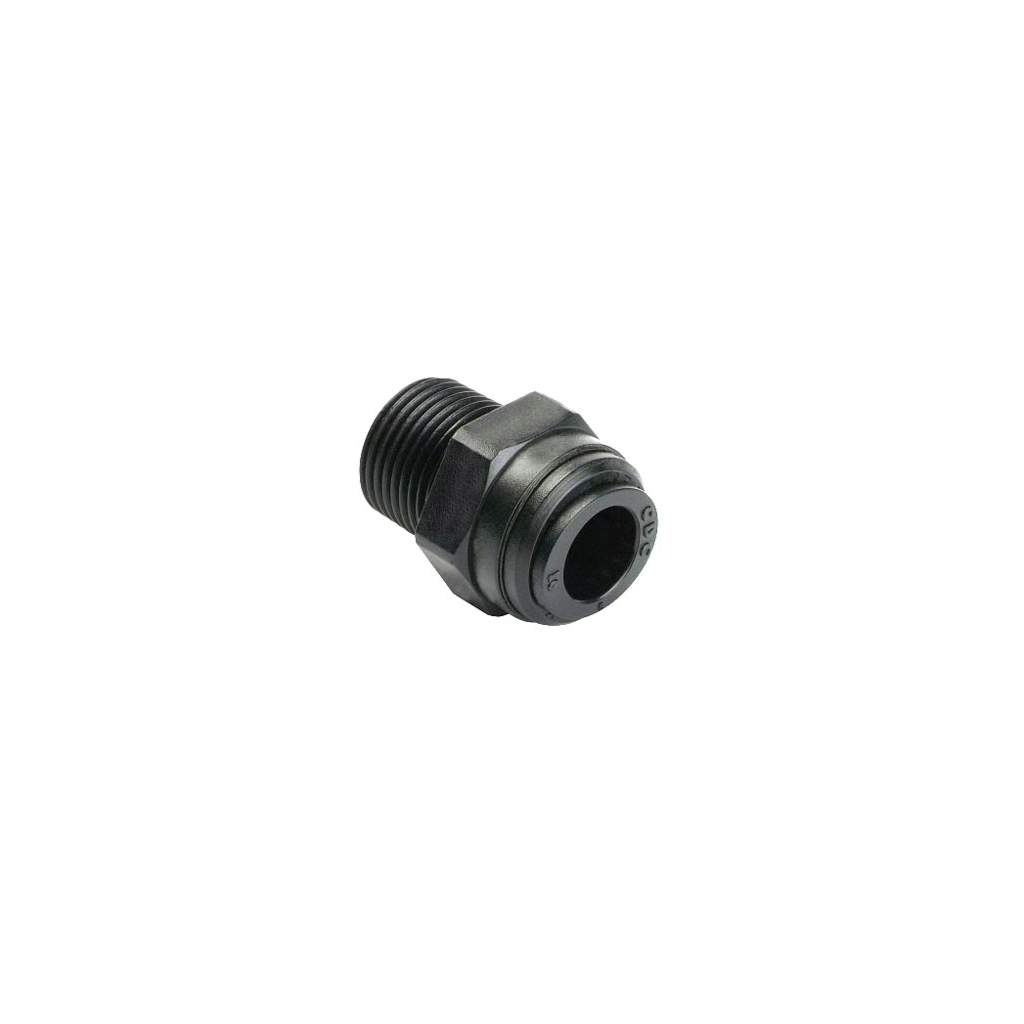

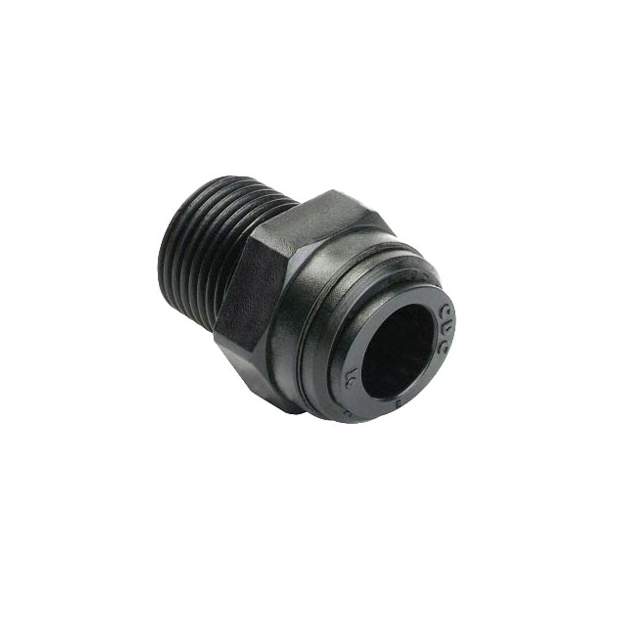

HPC-R Einschraub-Verbinder BSPT-Kegelgewinde metrische Steckverbindung

0,94 €

Inkl. gesetzlicher Ust. zzgl. Versand

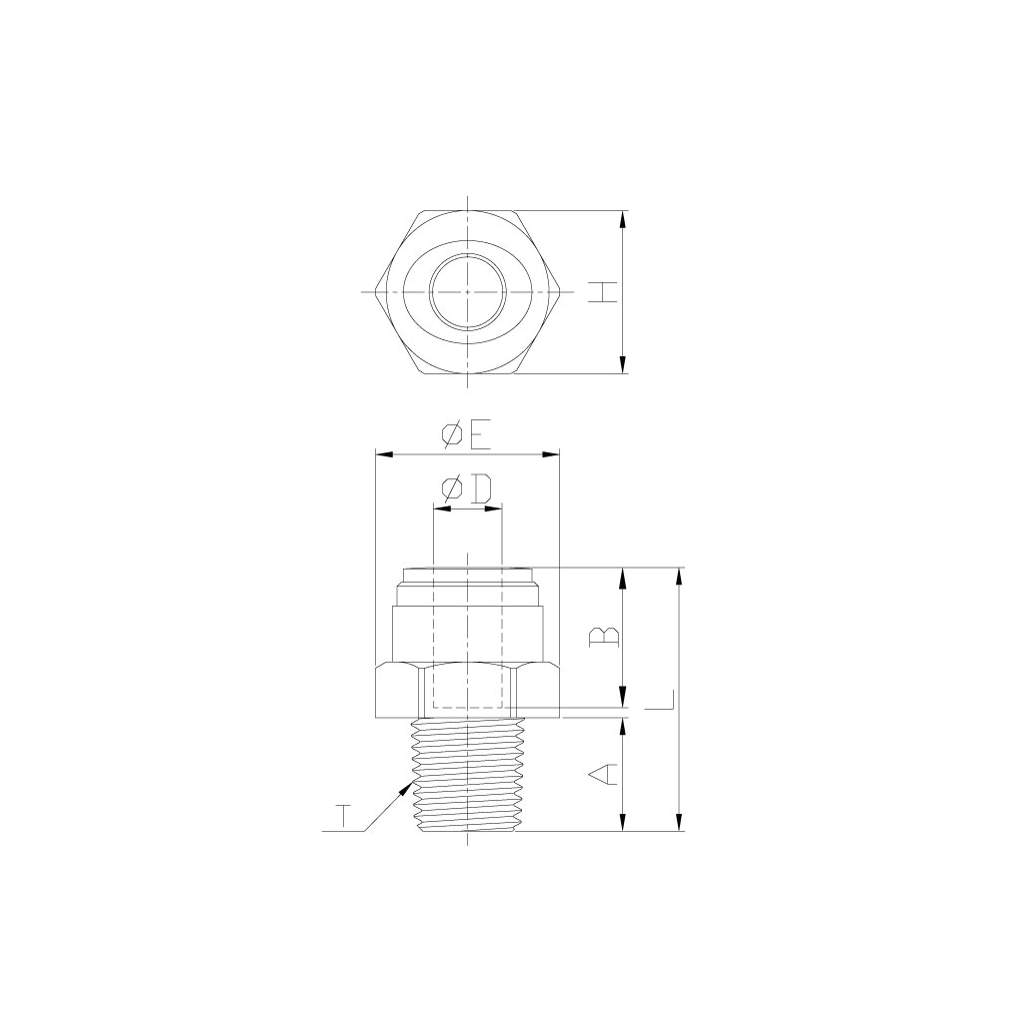

Varianten:	ØD	T (BSPT)	A	B	ØE	H	L	Gewicht
HPC04R01B	4mm	R1/8 Zoll	9,1mm	14,7mm	18,5mm	17,0mm	26,0mm	4,1g
HPC06R01B	6mm	R1/8 Zoll	9,1mm	16,1mm	18,5mm	17,0mm	26,2mm	3,9g
HPC06R02B	6mm	R1/4 Zoll	13,1mm	16,1mm	18,5mm	17,0mm	26,7mm	4,2g
HPC06R03B	6mm	R3/8 Zoll	13,5mm	16,1mm	21,0mm	19,0mm	26,6mm	5,9g
HPC06R04B	6mm	R1/2 Zoll	16,3mm	16,1mm	24,4mm	22,0mm	29,7mm	9,1g
HPC08R01B	8mm	R1/8 Zoll	9,1mm	17,5mm	21,0mm	19,0mm	28,1mm	5,2g
HPC08R02B	8mm	R1/4 Zoll	13,1mm	17,5mm	21,0mm	19,0mm	30,6mm	5,8g
HPC08R03B	8mm	R3/8 Zoll	13,5mm	17,5mm	21,0mm	19,0mm	27,0mm	5,7g
HPC10R02B	10mm	R1/4 Zoll	13,1mm	20,1mm	21,0mm	19,0mm	36,0mm	7,9g
HPC10R03B	10mm	R3/8 Zoll	13,5mm	20,1mm	23,2mm	21,0mm	28,8mm	6,7g
HPC10R04B	10mm	R1/2 Zoll	16,3mm	20,1mm	24,4mm	22,0mm	32,1mm	9,6g
HPC12R03B	12mm	R3/8 Zoll	13,5mm	24,7mm	26,5mm	24,0mm	32,2mm	8,9g
HPC12R04B	12mm	R1/2 Zoll	16,3mm	24,7mm	26,5mm	24,0mm	34,3mm	11,0g
