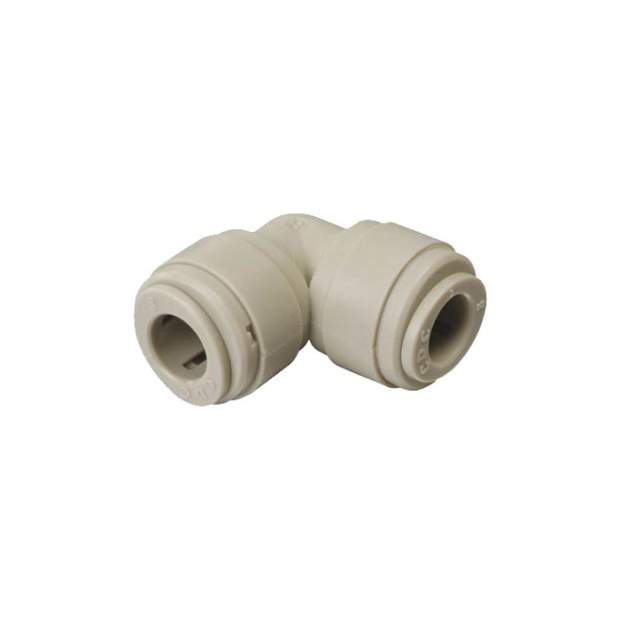

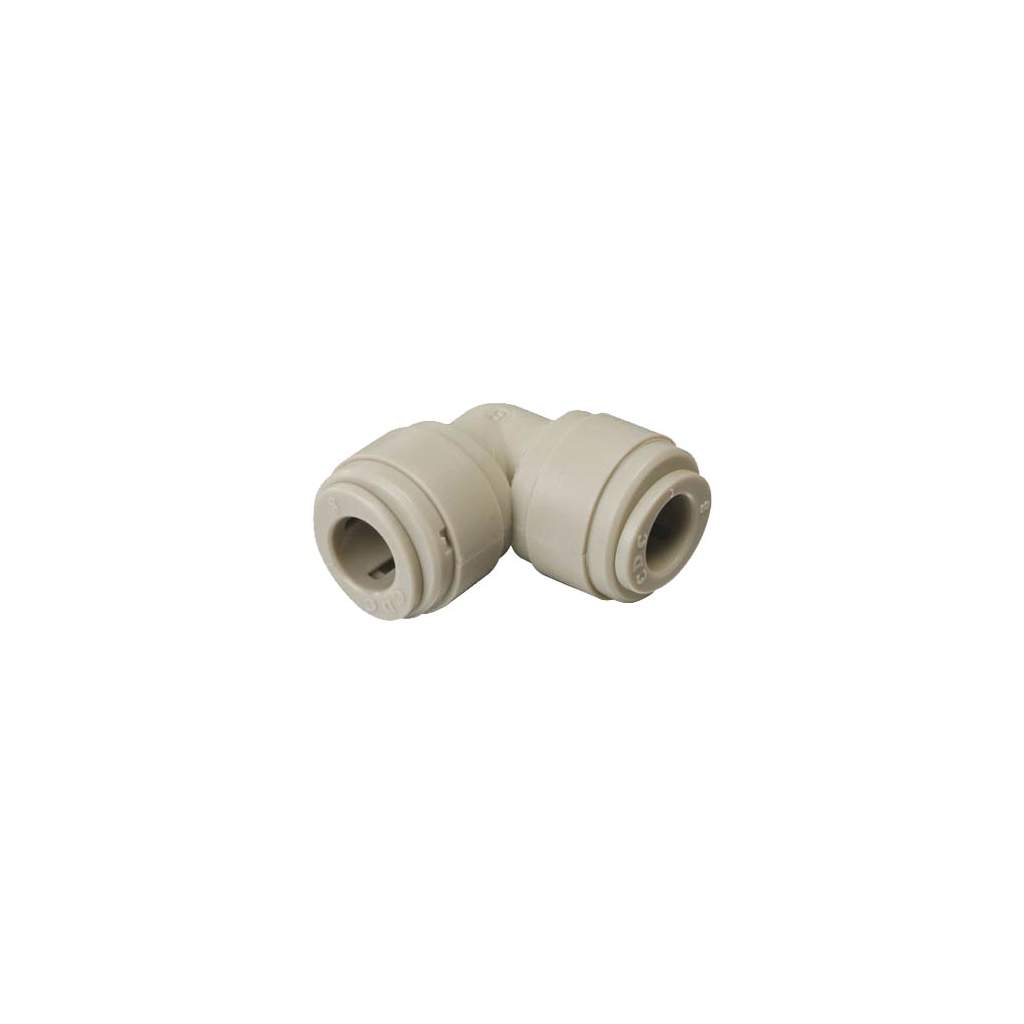

HUL Winkel-Verbinder zöllig zum Verbinden oder Reduzieren

Artikelnummer: SVZ110700

ab 1,43 €

inkl. 19% USt. , zzgl. Versand

sofort verfügbar

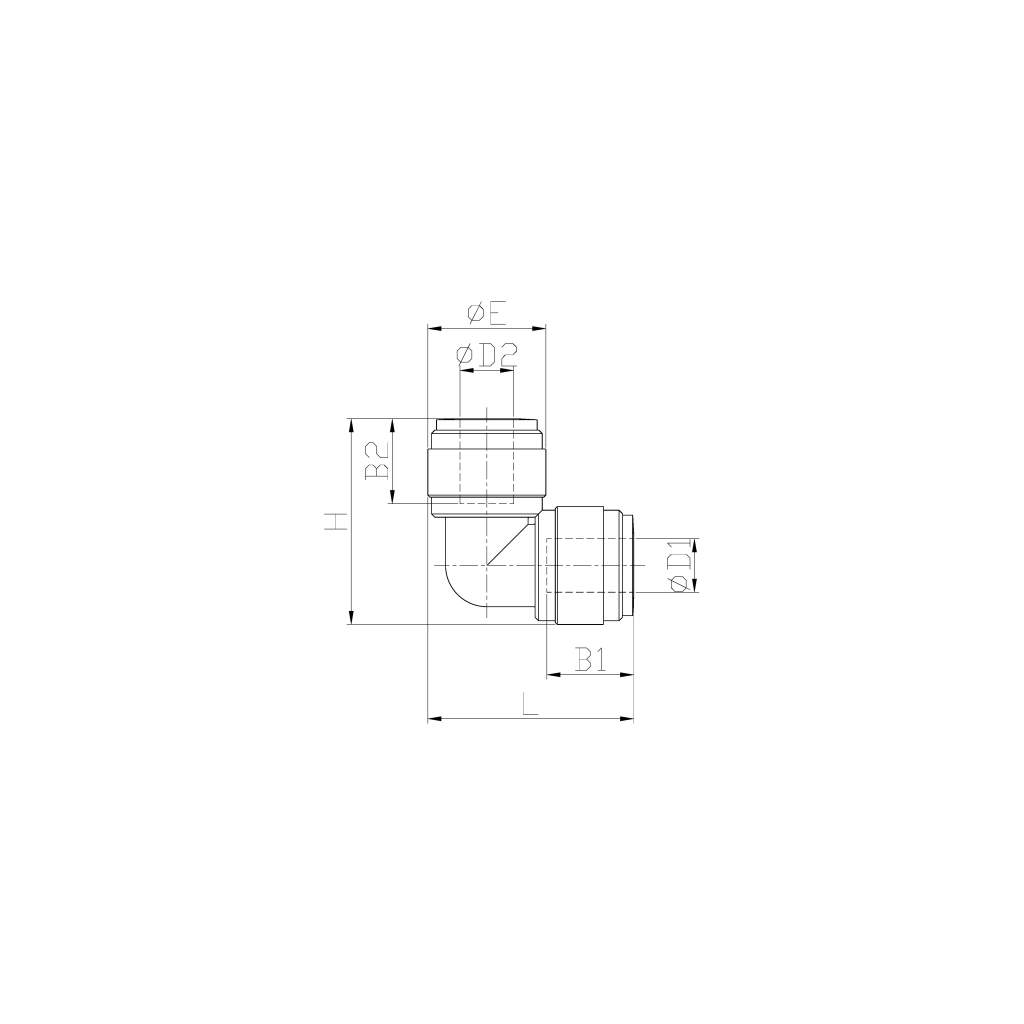

Varianten und Abmessungen:

HUL5/32-5/32G: ØD1 = 5/32 Zoll, ØD2 = 5/32 Zoll, B1 = 14,7mm, B2 = 14,7mm, ØE1 = 13,2mm, ØE2 = 13,2mm, L = 24,5mm, H = 24,5, Gewicht = 4,0g
HUL3/16-3/16G: ØD1 = 3/16 Zoll, ØD2 = 3/16 Zoll, B1 = 15,0mm, B2 = 15,0mm, ØE1 = 13,8mm, ØE2 = 13,8mm, L = 25,5mm, H = 25,5mm, Gewicht = 4,3g
HUL1/4-1/4G: ØD1 = 1/4 Zoll, ØD2 = 1/4 Zoll, B1 = 16,9mm, B2 = 16,9mm, ØE1 = 15,5mm, ØE2 = 15,5mm, L = 28,8mm, H = 28,8mm, Gewicht = 5,5g
HUL5/16-5/16G: ØD1 = 5/16 Zoll, ØD2 = 5/16 Zoll, B1 = 17,5mm, B2 = 17,5mm, ØE1 = 17,6mm, ØE2 = 17,6mm, L = 30,7mm, H = 30,7mm, Gewicht = 7,5g
HUL3/8-3/8G: ØD1 = 3/8 Zoll, ØD2 = 3/8 Zoll, B1 = 20,2mm, B2 = 20,2mm, ØE1 = 20,0mm, ØE2 = 20,0mm, L = 35,9mm, H = 35,9mm, Gewicht = 10,6g
HUL1/2-1/2G: ØD1 = 1/2 Zoll, ØD2 = 1/2 Zoll, B1 = 25,1mm, B2 = 25,1mm, ØE1 = 23,0mm, ØE2 = 23,0mm, L = 43,4mm, H = 43,4mm, Gewicht = 16,7g

Varianten als Reduzierung:

HUL5/16-5/32G: ØD1 = 5/16 Zoll, ØD2 = 5/32 Zoll, B1 = 17,5mm, B2 = 14,7mm, ØE1 = 17,6mm, ØE2 = 13,2mm, L = 28,3mm, H = 29,7mm, Gewicht = 5,9g
HUL5/16-1/4G: ØD1 = 5/16 Zoll, ØD2 = 1/4 Zoll, B1 = 17,5mm, B2 = 16,9mm, ØE1 = 17,6mm, ØE2 = 17,6mm, L = 30,7mm, H = 30,3mm, Gewicht = 7,6g
HUL3/8-1/4G: ØD1 = 3/8 Zoll, ØD2 = 1/4 Zoll, B1 = 20,2mm, B2 = 16,9mm, ØE1 = 23,0mm, ØE2 = 17,6mm, L = 37,9mm, H = 36,1mm, Gewicht = 12,9g
HUL3/8-5/16G: ØD1 = 3/8 Zoll, ØD2 = 5/16 Zoll, B1 = 20,2mm, B2 = 17,5mm, ØE1 = 20,0mm, ØE2 = 20,0mm, L = 35,9mm, H = 35,9mm, Gewicht = 11,1g
HUL1/2-3/8G: ØD1 = 1/2 Zoll, ØD2 = 3/8 Zoll, B1 = 25,1mm , B2 = 20,2mm, ØE1 = 23,0mm, ØE2 = 23,0mm, L = 43,4mm, H = 42,6mm, Gewicht = 17,5g
