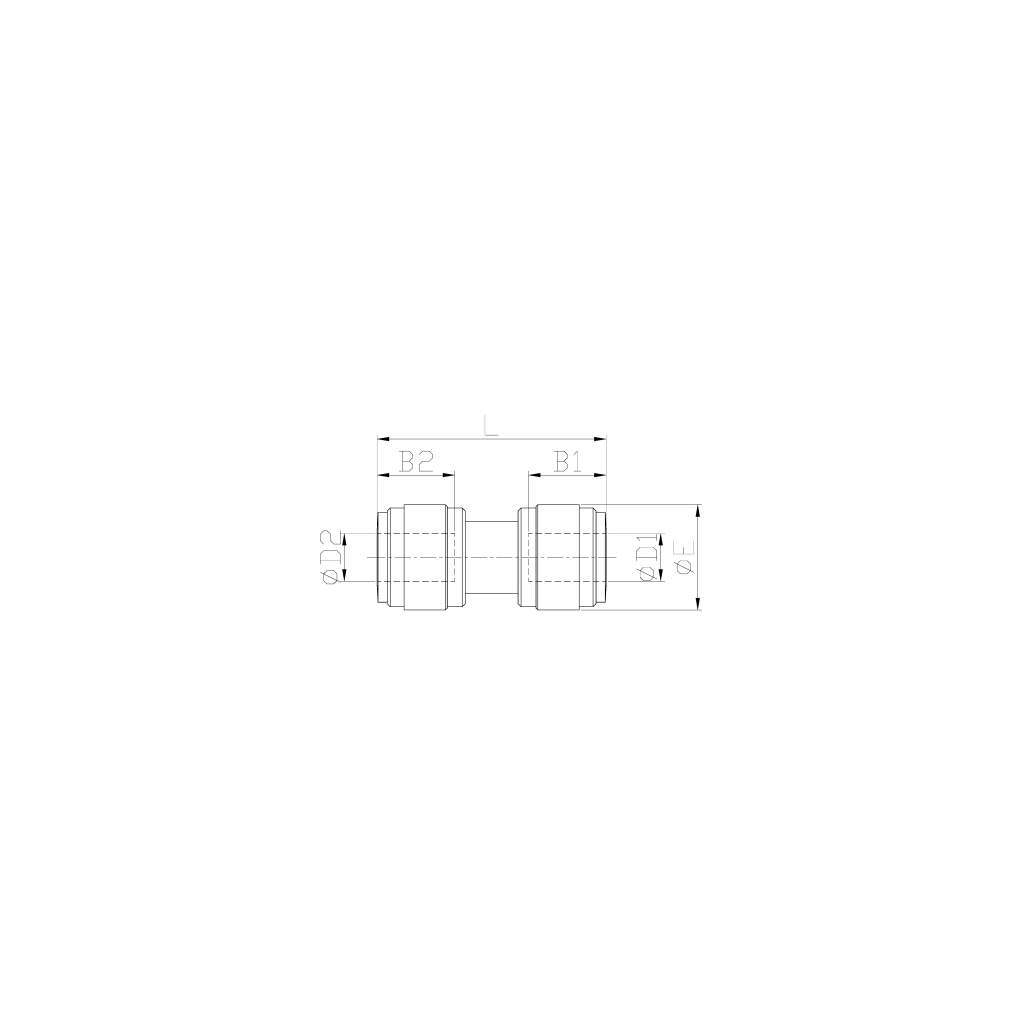

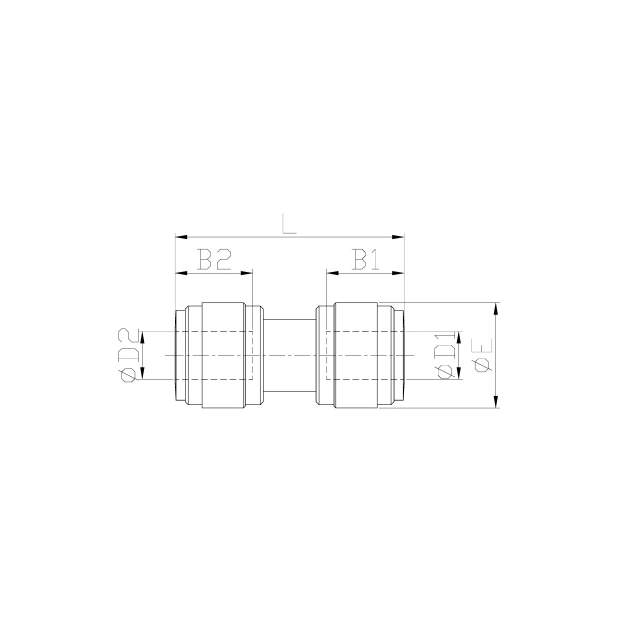

Varianten: |
ØD1 |
ØD2 |
B1 |
B2 |
ØE1 |
ØE2 |
L |
Gewicht |
HUC5/32-5/32G |
5/32 Zoll |
5/32 Zoll |
14,7mm |
14,7mm |
13,2mm |
13,2mm |
31,8mm |
3,8g |
HUC3/16-3/16G |
3/16 Zoll |
3/16 Zoll |
15,0mm |
15,0mm |
13,8mm |
13,8mm |
32,5mm |
4,0 |
HUC1/4-1/4G |
1/4 Zoll |
1/4 Zoll |
16,9mm |
16,9mm |
15,5mm |
15,5mm |
36,2mm |
5,2g |
HUC5/16-5/16G |
5/16 Zoll |
5/16 Zoll |
17,5mm |
17,5mm |
17,6mm |
17,6mm |
38,2mm |
6,9g |
HUC3/8-3/8G |
3/8 Zoll |
3/8 Zoll |
20,2mm |
20,2mm |
20,0mm |
20,0mm |
42,9mm |
9,7g |
HUC1/2-1/2G |
1/2 Zoll |
1/2 Zoll |
25,1mm |
25,1mm |
23,6mm |
23,6mm |
53,2mm |
14,6g |
Ausführungen zur Reduzierung der Steckverbindung:
Varianten: |
ØD1 |
ØD2 |
B1 |
B2 |
ØE1 |
ØE2 |
L |
Gewicht |
HUC5/16-5/32G |
5/16 Zoll |
5/32 Zoll |
17,5mm |
14,7mm |
17,6mm |
17,6mm |
36,6mm |
6,5g |
HUC5/16-1/4G |
5/16 Zoll |
1/4 Zoll |
17,5mm |
16,9mm |
17,6mm |
17,6mm |
36,8mm |
6,0g |
HUC3/8-3/16G |
3/8 Zoll |
3/16 Zoll |
20,2mm |
15,0mm |
20,0mm |
13,8mm |
37,2mm |
6,9g |
HUC3/8-1/4G |
3/8 Zoll |
1/4 Zoll |
20,2mm |
16,9mm |
20,0mm |
15,5mm |
38,5mm |
7,3g |
HUC3/8-5/16G |
3/8 Zoll |
5/16 Zoll |
20,2mm |
17,5mm |
20,0mm |
20,0mm |
42,5mm |
9,9g |
HUC1/2-5/16G |
1/2 Zoll |
5/16 Zoll |
25,1mm |
17,5mm |
23,6mm |
17,6mm |
44,6mm |
11,2g |
HUC1/2-3/8G |
1/2 Zoll |
3/8 Zoll |
25,1mm |
20,2mm |
23,6mm |
23,6mm |
52,4mm |
16,3g |
Umsetzung von zölliger Steckverbindung auf metrische Steckverbindung:
Varianten: |
ØD1 |
ØD2 |
B1 |
B2 |
ØE1 |
ØE2 |
L |
Gewicht |
HUC1/4-06G |
1/4 Zoll |
6mm |
16,9mm |
16,1mm |
15,5mm |
15,5mm |
36,2mm |
5,3g |
