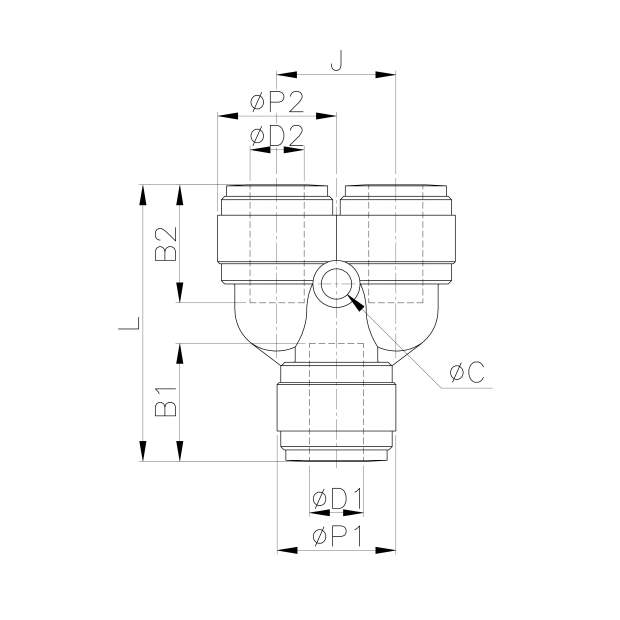

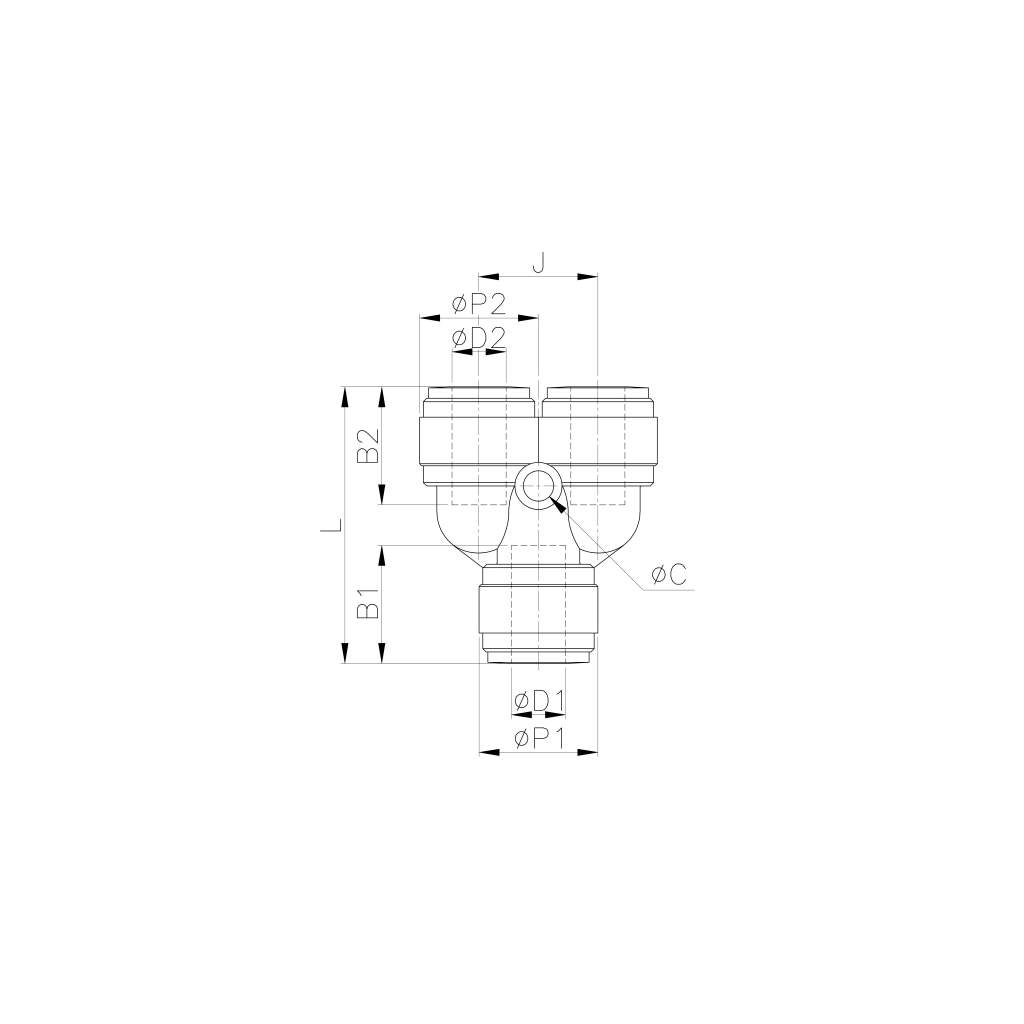

Varianten und Abmessungen:
-
HUY5/32-5/32G: ØD1 = 5/32 Zoll, ØD2 = 5/32 Zoll, B1 = 14,7mm, B2 = 14,7mm, ØP1 = 13,8mm, ØP2 = 13,8mm, L = 33,7mm, J = 13,5mm, C = 3,3mm, Gewicht = 6,7g
-
HUY3/16-3/16G: ØD1 = 3/16 Zoll, ØD2 = 3/16 Zoll, B1 = 15,0mm, B2 = 15,0mm, ØP1 = 13,8mm, ØP2 = 13,8mm, L = 34,1mm, J = 13,5mm, C = 3,3mm, Gewicht = 6,8g
-
HUY1/4-1/4G: ØD1 = 1/4 Zoll, ØD2 = 1/4 Zoll, B1 = 16,9mm, B2 = 16,9mm, ØP1 = 15,5mm, ØP2 = 15,5mm, L = 38,8mm, J = 15,5mm, C = 3,3mm, Gewicht = 8,8g
-
HUY5/16-5/16G: ØD1 = 5/16 Zoll, ØD2 = 5/16 Zoll, B1 = 17,5mm, B2 = 17,5mm, ØP1 = 17,6mm, ØP2 = 17,6mm, L = 41,0mm, J = 17,6mm, C = 4,5mm, Gewicht = 11,8g
-
HUY3/8-3/8G: ØD1 = 3/8 Zoll, ØD2 = 3/8 Zoll, B1 = 20,2mm, B2 = 20,2mm, ØP1 = 20,0mm, ØP2 = 20,0mm, L = 46,4mm, J = 20,0mm, C = 4,5mm, Gewicht = 16,7g
- HUY1/2-1/2G: ØD1 = 1/2 Zoll, ØD2 = 1/2 Zoll, B1 = 25,1mm, B2 = 25,1mm, ØP1 = 23,0mm, ØP2 = 23,0mm, L = 56,8mm, J = 23,0mm, C = 4,5mm, Gewicht = 25,1g
| Hersteller: | FLUIDFIT |
| Kategorie: | Fluidtechnik |
| Artikelnummer: | SVZ130700 |
