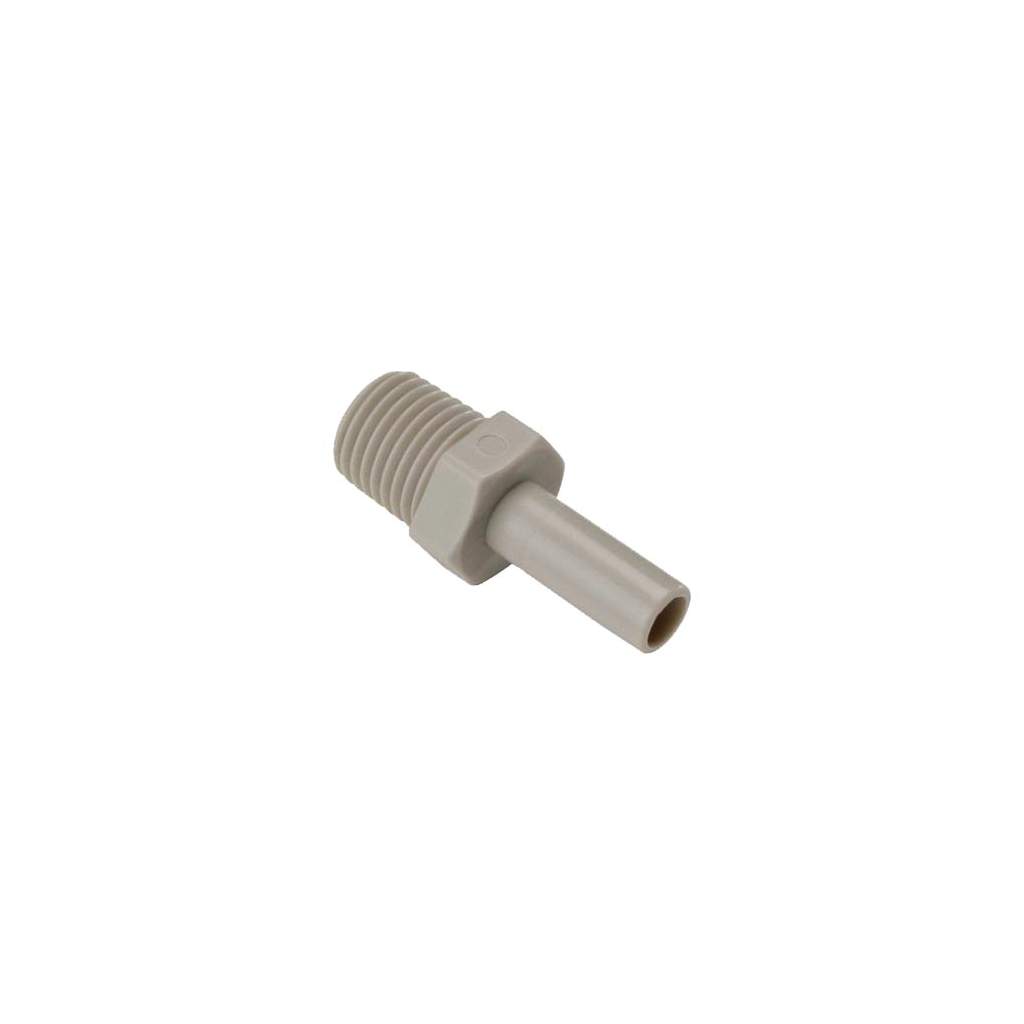

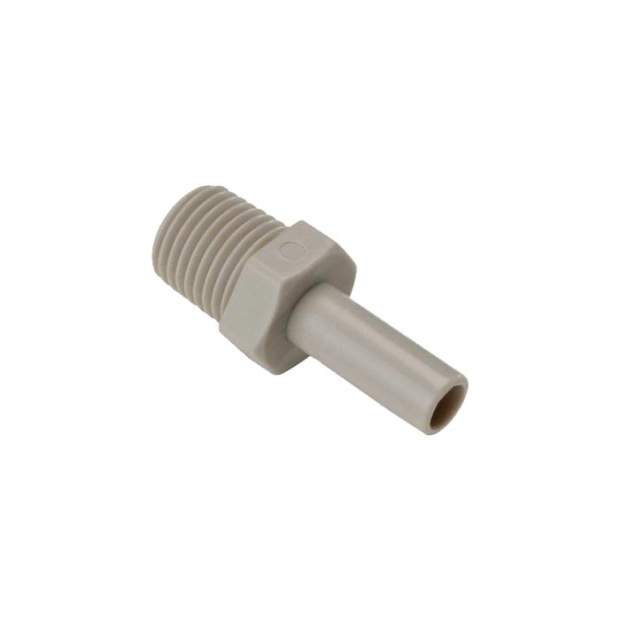

HCJ-N Einschraub-Stutzen NPTF-Kegelgewinde mit zölligem Stutzen 5/32 bis 1/2 Zoll

0,74 €

Inkl. gesetzlicher Ust. zzgl. Versand

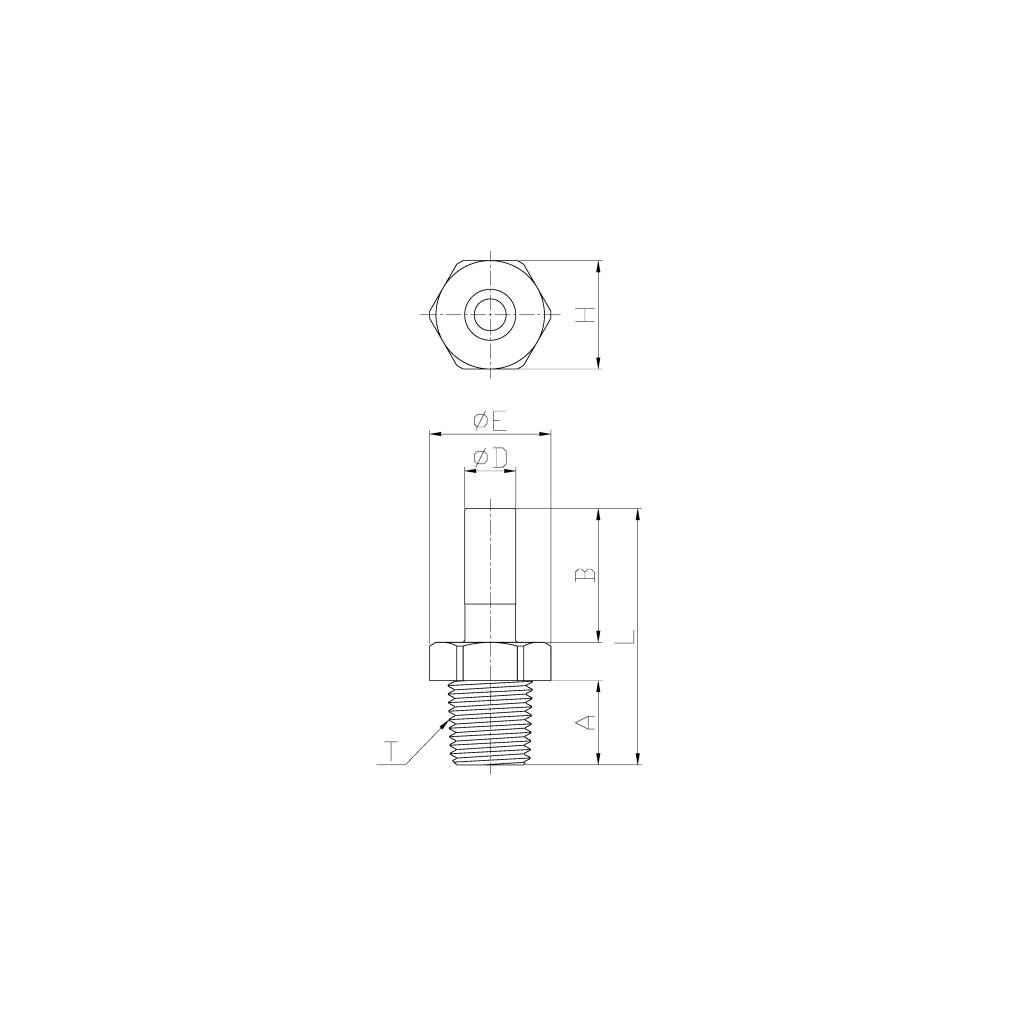

Varianten:	ØD	T (NPTF)	A	B	ØE	H	L	Gewicht
HCJ5/32-N01G	5/32 Zoll	N1/8 Zoll	9,1mm	18,0mm	14,1mm	12,7mm (1/2)	33,1mm	1,9g
HCJ5/32-N02G	5/32 Zoll	N1/4 Zoll	13,2mm	18,0mm	17,8mm	15,8mm (5/8)	37,2mm	3,6g
HCJ3/16-N01G	3/16 Zoll	N1/8 Zoll	9,1mm	18,0mm	14,1mm	12,7mm (1/2)	33,1mm	2,0g
HCJ1/4-N01G	1/4 Zoll	N1/8 Zoll	9,1mm	19,0mm	14,1mm	12,7mm (1/2)	34,1mm	2,1g
HCJ1/4-N02G	1/4 Zoll	N1/4 Zoll	13,2mm	19,0mm	17,8mm	15,8mm (5/8)	38,2mm	3,8g
HCJ5/16-N01G	5/16 Zoll	N1/8 Zoll	9,1mm	20,0mm	14,1mm	12,7mm (1/2)	39,2mm	2,8g
HCJ5/16-N02G	5/16 Zoll	N1/4 Zoll	13,2mm	20,0mm	17,8mm	15,8mm (5/8)	39,2mm	3,9g
HCJ5/16-N03G	5/16 Zoll	N3/8 Zoll	13,8mm	20,0mm	21,5mm	19,0mm (3/4)	40,3mm	5,9g
HCJ3/8-N02G	3/8 Zoll	N1/4 Zoll	13,2mm	23,0mm	17,8mm	15,8mm (5/8)	42,2mm	4,5g
HCJ3/8-N03G	3/8 Zoll	N3/8 Zoll	13,8mm	23,0mm	21,5mm	19,0mm (3/4)	43,3mm	6,5g
HCJ1/2-N03G	1/2 Zoll	N3/8 Zoll	13,8mm	27,0mm	21,5mm	19,0mm (3/4)	47,3mm	6,9g
HCJ1/2-N04G	1/2 Zoll	N1/2 Zoll	17,8mm	27,0mm	26,8mm	23,8mm (15/16)	51,3mm	11,4g
