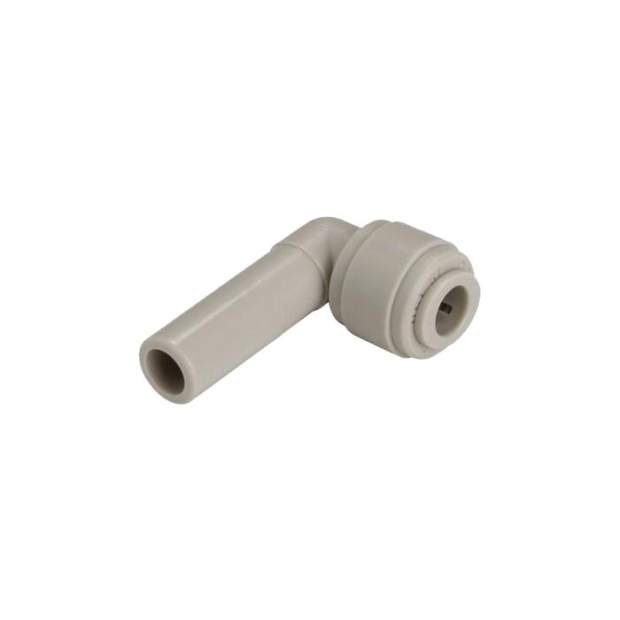

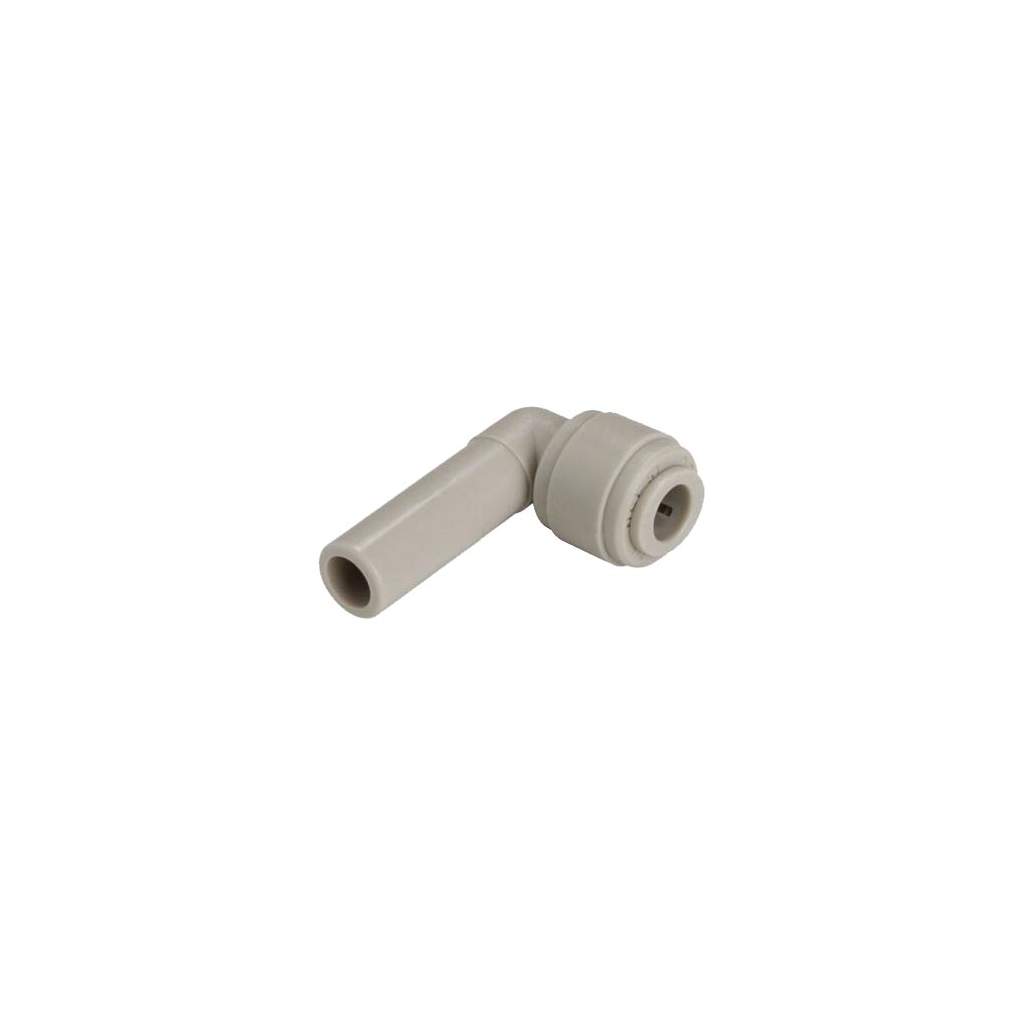

HLJ Winkel-Einsteck-Verbinder zöllig zum Verbinden oder Reduzieren

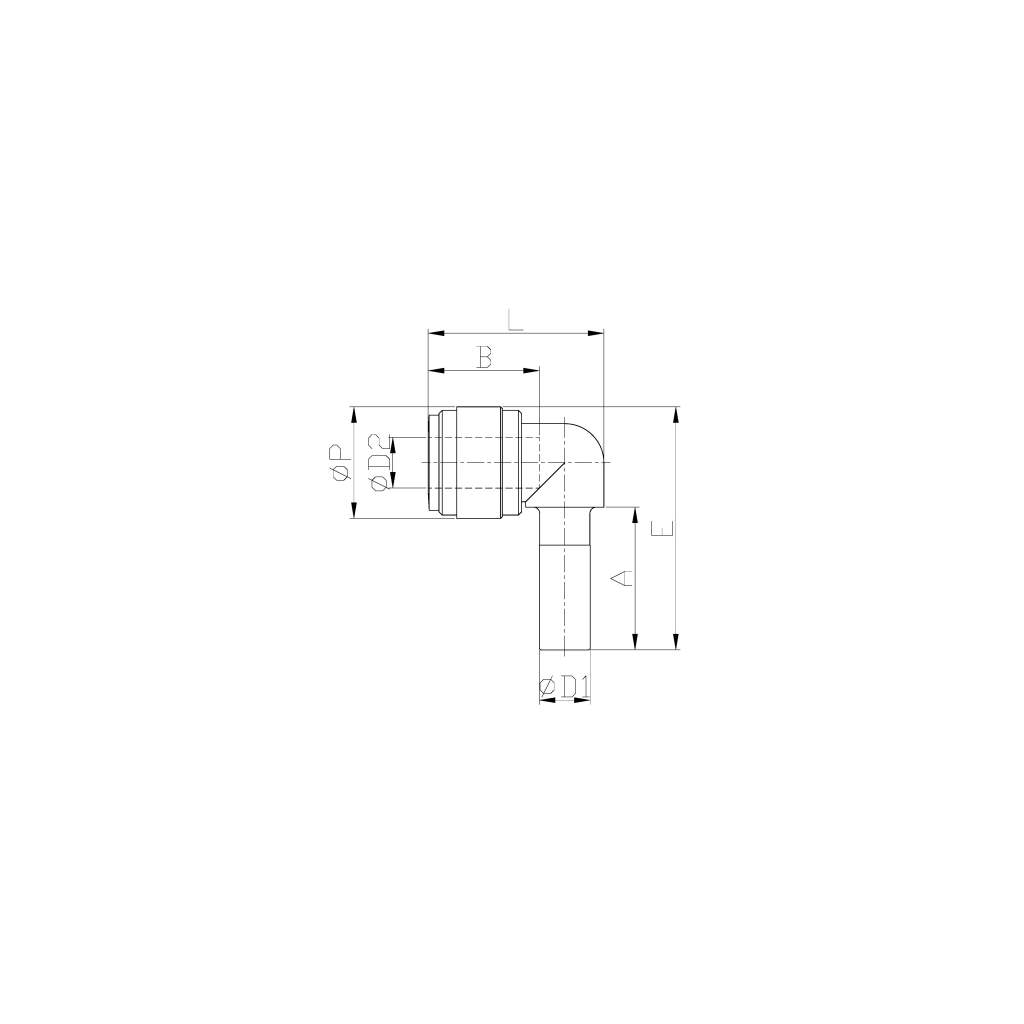

Varianten und Abmessungen:

• HLJ5/32-5/32G: ØD1 = 5/32 Zoll, ØD2 = 5/32 Zoll, ØP = 13,2mm, A = 18,0mm, B = 14,7mm, E = 30,1mm, L = 21,9mm, Gewicht = 2,5g

  ---

• HLJ3/16-3/16G: ØD1 = 3/16 Zoll, ØD2 = 3/16 Zoll, ØP = 13,8mm, A = 18,5mm, B = 15,0mm, E = 31,4mm, L = 22,5mm, Gewicht = 2,9g

  ---

• HLJ1/4-1/4G: ØD1 = 1/4 Zoll, ØD2 = 1/4 Zoll, ØP = 15,5mm, A = 21,0mm, B = 16,9mm, E = 34,8mm, L = 25,1mm, Gewicht = 3,7g

  ---

• HLJ5/16-5/16G: ØD1 = 5/16 Zoll, ØD2 = 5/16 Zoll, ØP = 17,6mm, A = 22,5mm, B = 17,5mm, E = 38,3mm, L = 27,7mm, Gewicht = 5,4g

  ---

• HLJ3/8-3/8G: ØD1 = 3/8 Zoll, ØD2 = 3/8 Zoll, ØP = 20,0mm, A = 24,8mm, B = 20,2mm, E = 43,2mm, L = 31,4mm, Gewicht = 7,9g

  ---

• HLJ1/2-1/2G: ØD1 = 1/2 Zoll, ØD2 = 1/2 Zoll, ØP = 23,6mm, A = 29,5mm, B = 25,1mm, E = 51,2mm, L = 39,2mm, Gewicht = 12,7g

Varianten als Reduzierung:

• HLJ3/8-1/4G: ØD1 = 3/8 Zoll, ØD2 = 1/4 Zoll, ØP = 15,5mm, A = 24,8mm, B = 16,9mm, E = 38,6mm, L = 25,1mm, Gewicht = 4,5g

  ---

• HLJ3/8-5/16G: ØD1 = 3/8 Zoll, ØD2 = 5/16 Zoll, ØP = 20,0mm, A = 24,8mm, B = 17,5mm, E = 43,2mm, L = 31,0mm, Gewicht = 8,1g

Variante mit metrischer Steckverbindung:

• HLJ3/8-06B: ØD1 = 3/8 Zoll, ØD2 = 6mm, ØP = 15,5mm, A = 24,8mm, B = 16,1mm, E = 38,6mm, L = 25,1mm, Gewicht = 4,5g
