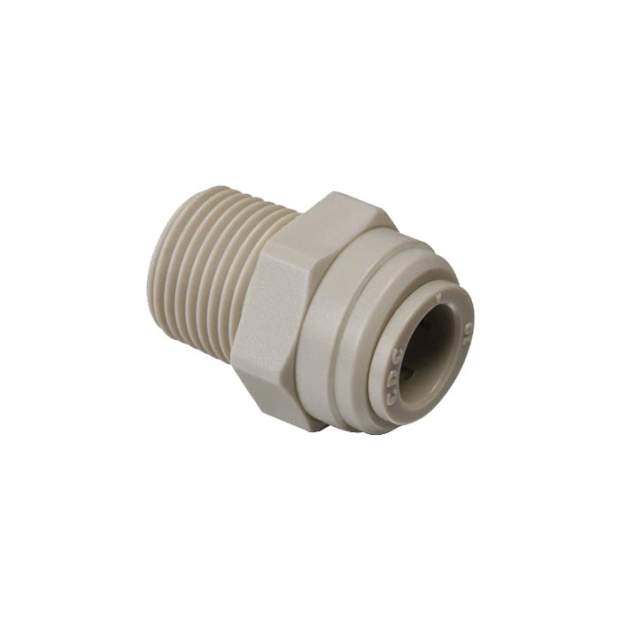

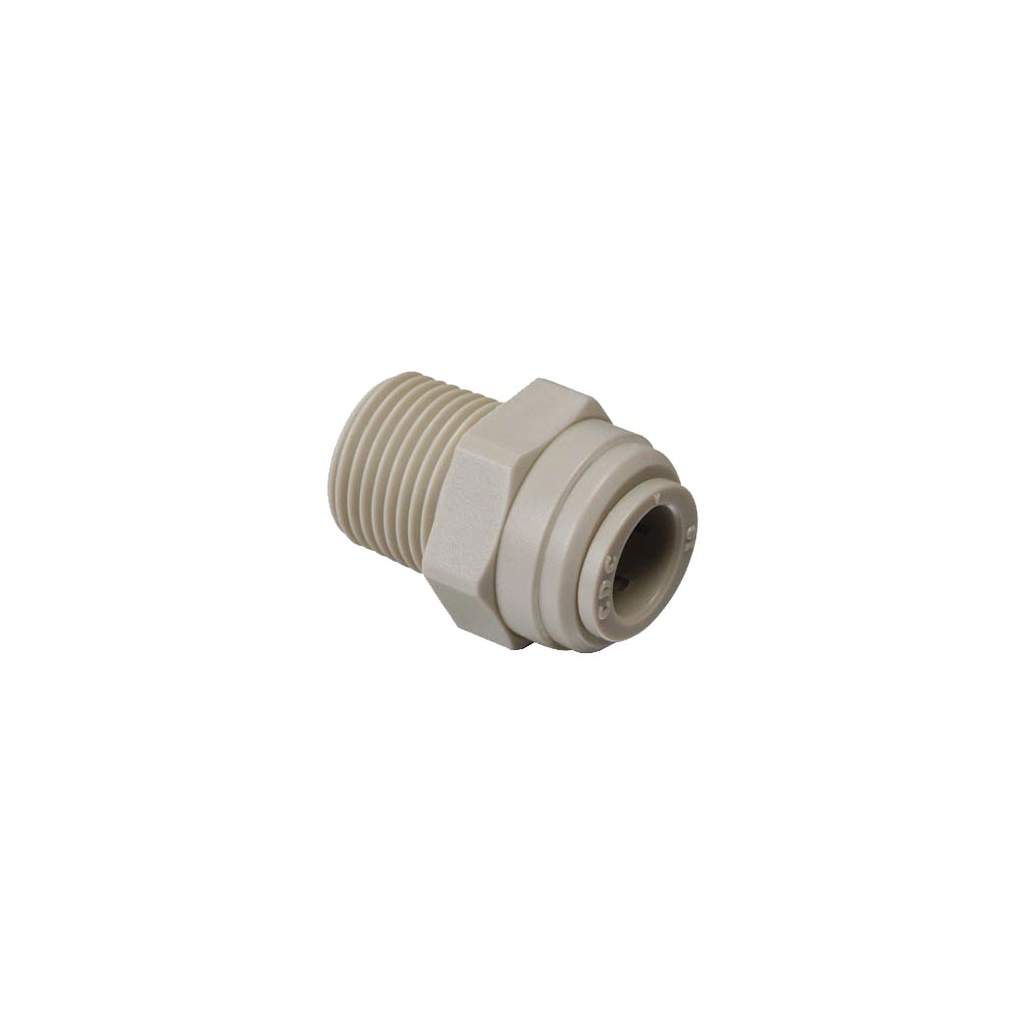

HPC-R Einschraub-Verbinder zöllig mit Kegelgewinde (BSPT)

Artikelnummer: SVZ110100

ab 1,50 €

inkl. 19% USt. , zzgl. Versand

sofort verfügbar

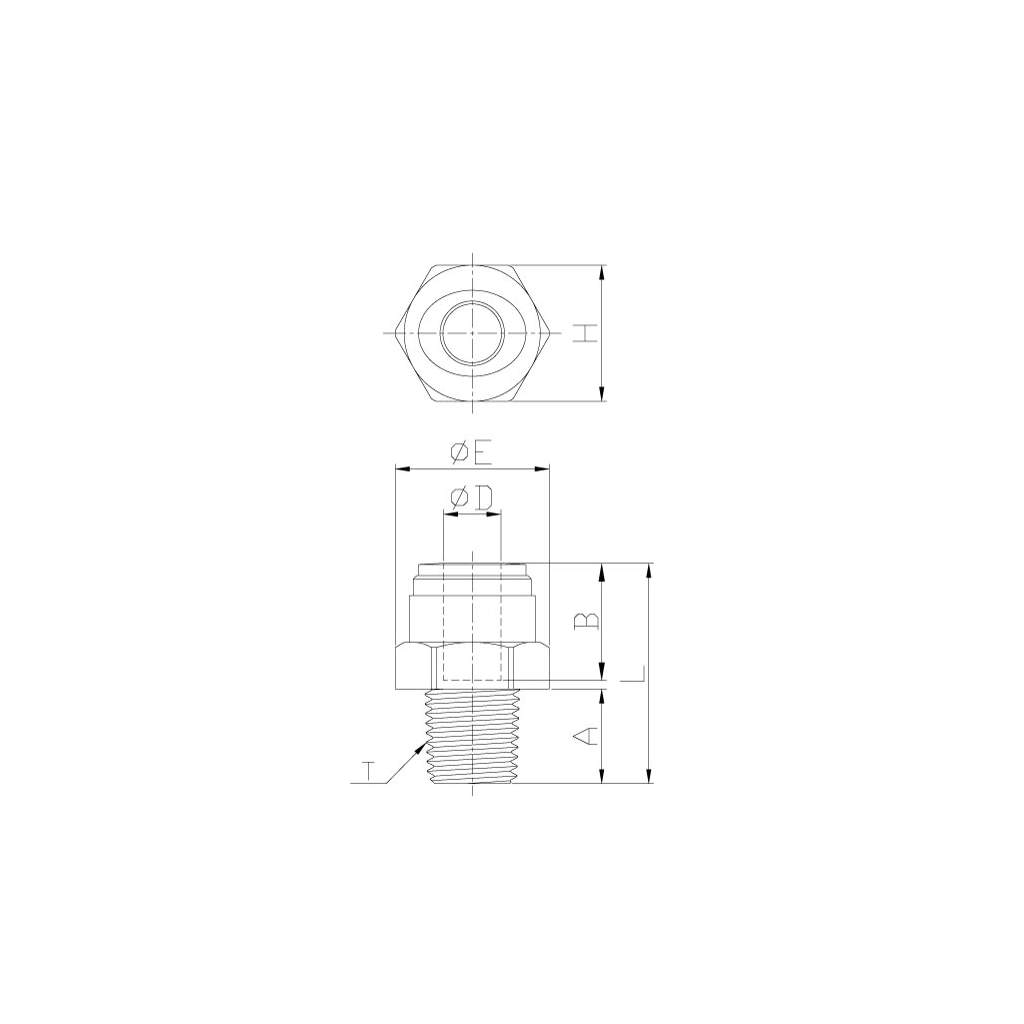

Varianten und Abmessungen:

HPC1/4-R01G: ØD = 1/4 Zoll, T (BSPT) = R1/8 Zoll, A = 8,1mm, B = 16,4mm, ØE = 18,5mm, H = 17mm, L = 26,2mm, Gewicht = 4,0g
HPC1/4-R02G: ØD = 1/4 Zoll, T (BSPT) = R1/4 Zoll, A = 12,2mm, B = 16,1mm, ØE = 18,5mm, H = 17mm, L = 26,8mm, Gewicht = 3,2g
HPC1/4-R03G: ØD = 1/4 Zoll, T (BSPT) = R3/8 Zoll, A = 13,5mm, B = 16,9mm, ØE = 21,0mm, H = 19mm, L = 26,6mm, Gewicht = 5,8g
HPC3/8-R02G: ØD = 3/8 Zoll, T (BSPT) = R1/4 Zoll, A = 13,1mm, B = 20,2mm, ØE = 21,0mm, H = 19mm, L = 36,1mm, Gewicht = 7,8g
HPC3/8-R03G: ØD = 3/8 Zoll, T (BSPT) = R3/8 Zoll, A = 13,5mm, B = 20,2mm, ØE = 23,2mm, H = 21mm, L = 28,9mm, Gewicht = 6,8g
