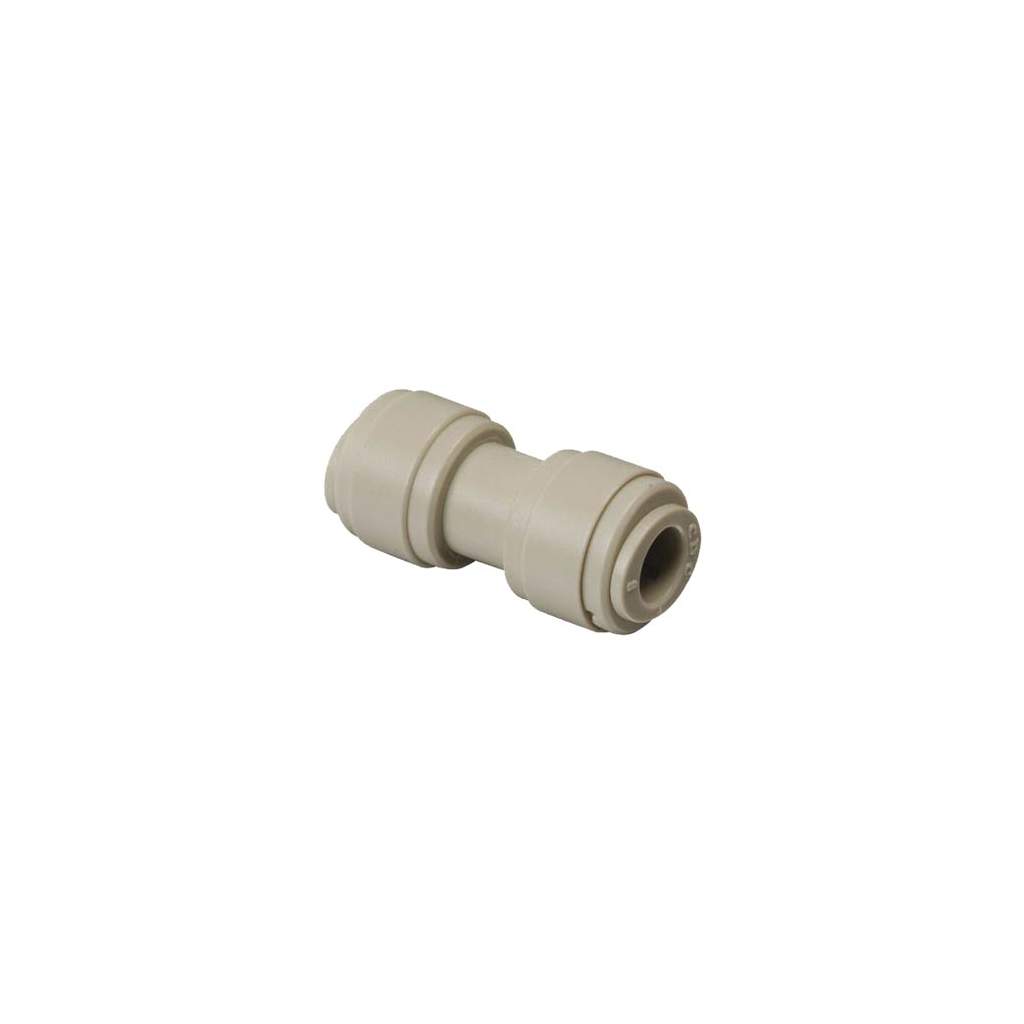

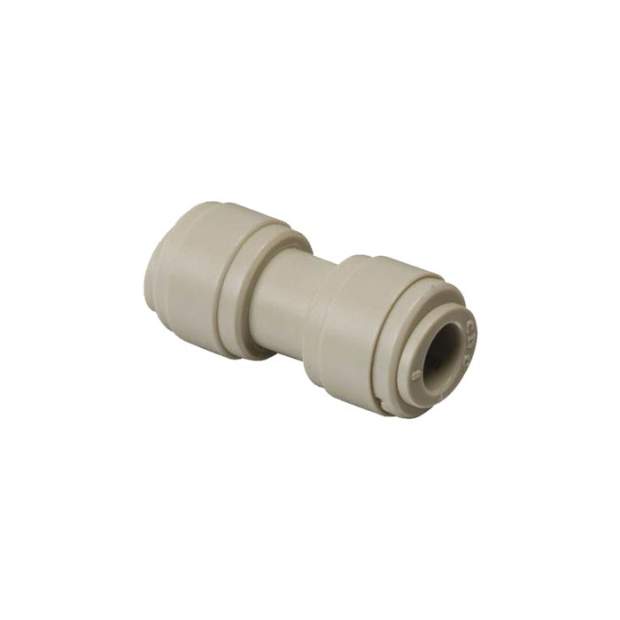

HUC Gerader Verbinder zöllig zum Verbinden oder Reduzieren

Artikelnummer: SVZ100700

ab 1,51 €

inkl. 19% USt. , zzgl. Versand

sofort verfügbar

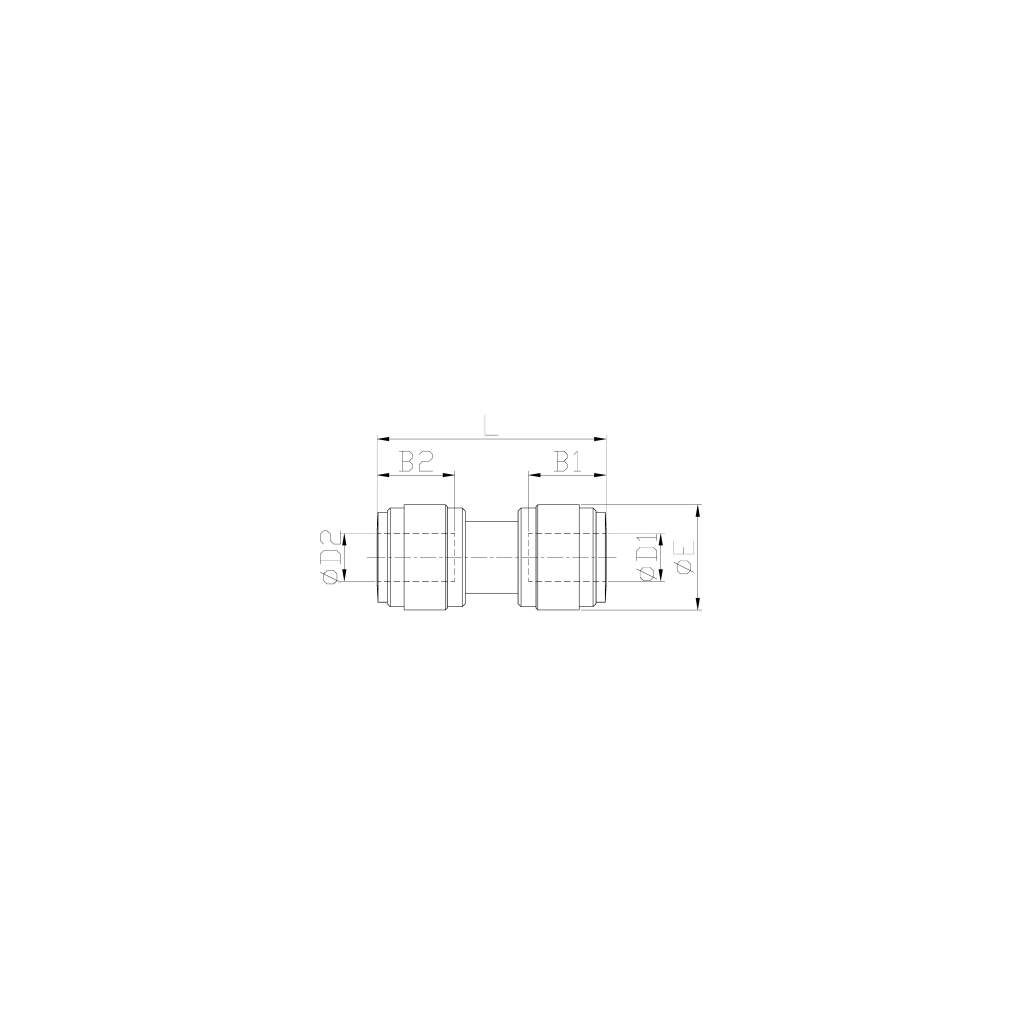

Varianten und Abmessungen:

HUC5/32-5/32G: ØD1 = 5/32 Zoll, ØD2 = 5/32 Zoll, B1 = 14,7mm, B2 = 14,7mm, ØE1 = 13,2mm, ØE2 = 13,2mm, L = 31,8mm, Gewicht = 3,8g
HUC3/16-3/16G: ØD1 = 3/16 Zoll, ØD2 = 3/16 Zoll, B1 = 15,0mm, B2 = 15,0mm, ØE1 = 13,8mm, ØE2 = 13,8mm, L = 32,5mm, Gewicht = 4,0g
HUC1/4-1/4G: ØD1 = 1/4 Zoll, ØD2 = 1/4 Zoll, B1 = 16,9mm, B2 = 16,9mm, ØE1 = 15,5mm, ØE2 = 15,5mm, L = 36,2mm, Gewicht = 5,2g
HUC5/16-5/16G: ØD1 = 5/16 Zoll, ØD2 = 5/16 Zoll, B1 = 17,5mm, B2 = 17,5mm, ØE1 = 17,6mm, ØE2 = 17,6mm, L = 38,2mm, Gewicht = 6,9g
HUC3/8-3/8G: ØD1 = 3/8 Zoll, ØD2 = 3/8 Zoll, B1 = 20,2mm, B2 = 20,2mm, ØE1 = 20,0mm, ØE2 = 20,0mm, L = 42,9mm, Gewicht = 9,7g
HUC1/2-1/2G: ØD1 = 1/2 Zoll, ØD2 = 1/2 Zoll, B1 = 25,1mm, B2 = 25,1mm, ØE1 = 23,6mm, ØE2 = 23,6mm, L = 53,2,8mm, Gewicht = 14,6g

Varianten als Reduzierung:

HUC5/16-5/32G: ØD1 = 5/16 Zoll, ØD2 = 5/32 Zoll, B1 = 17,5mm, B2 = 14,7mm, ØE1 = 17,6mm, ØE2 = 17,6mm, L = 36,6mm, Gewicht = 6,5g
HUC5/16-1/4G: ØD1 = 5/16 Zoll, ØD2 = 1/4 Zoll, B1 = 17,5mm, B2 = 16,9mm, ØE1 = 17,6mm, ØE2 = 17,6mm, L = 36,8mm, Gewicht = 6,0g
HUC3/8-1/4G: ØD1 = 3/8 Zoll, ØD2 = 1/4 Zoll, B1 = 20,2mm, B2 = 16,9mm, ØE1 = 20,0mm, ØE2 = 15,5mm, L = 38,5mm, Gewicht = 7,3g
HUC3/8-5/16G: ØD1 = 3/8 Zoll, ØD2 = 5/16 Zoll, B1 = 20,2mm, B2 = 17,5mm, ØE1 = 20,0mm, ØE2 = 20,0mm, L = 42,5mm, Gewicht = 9,9g
HUC1/2-5/16G: ØD1 = 1/2 Zoll, ØD2 = 5/16 Zoll, B1 = 25,1mm, B2 = 17,5mm, ØE1 = 23,6mm, ØE2 = 17,6mm, L = 44,6mm, Gewicht = 11,2g
HUC1/2-3/8G: ØD1 = 1/2 Zoll, ØD2 = 3/8 Zoll, B1 = 25,1mm , B2 = 20,2mm, ØE1 = 23,6mm, ØE2 = 23,6mm, L = 52,4mm, Gewicht = 16,3g
