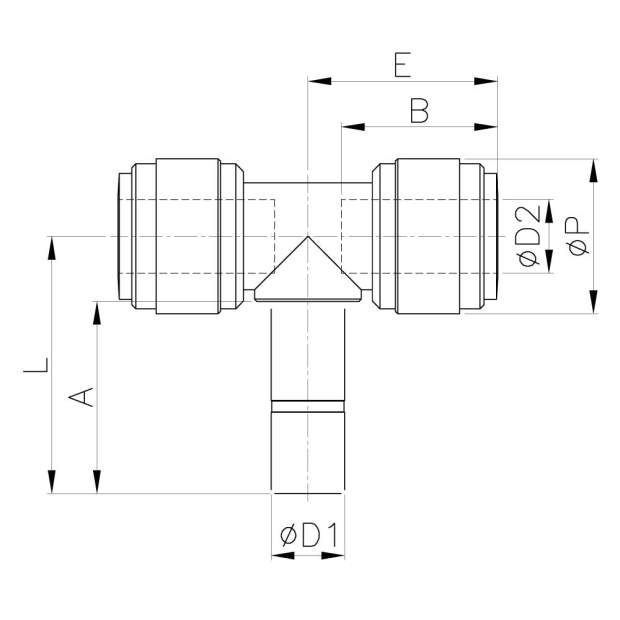

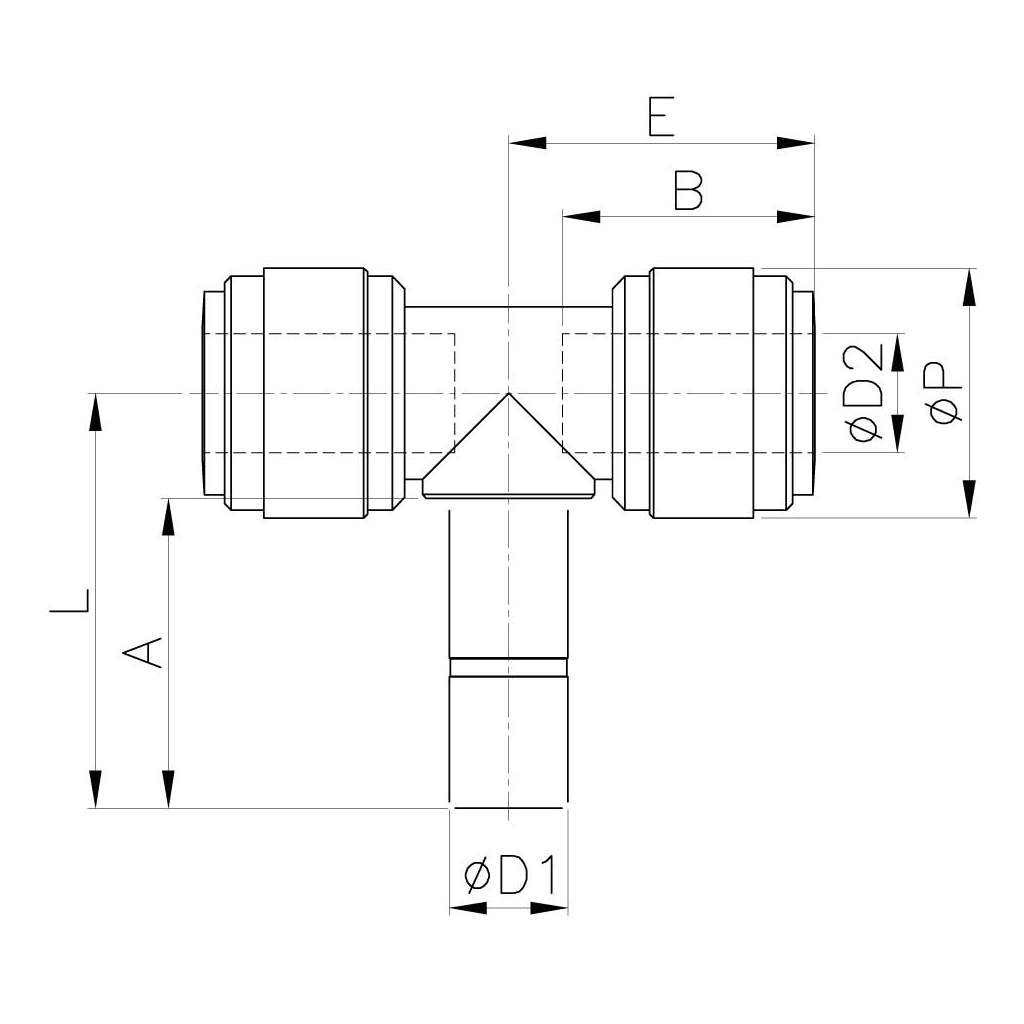

| Varianten: | ØD1 | ØD2 | ØP | L | E | A | B | Gewicht |
|---|---|---|---|---|---|---|---|---|
| HTJ1/4-1/4G | 1/4 Zoll | 1/4 Zoll | 15,5mm | 27,0mm | 20,1mm | 21,0mm | 16,9mm | 6,3g |
| HTJ5/16-5/16G | 5/16 Zoll = 8mm | 5/16 Zoll = 8mm | 17,6mm | 29,5mm | 21,5mm | 22,5mm | 17,5mm | 8,6g |
| HTJ3/8-3/8G | 3/8 Zoll | 3/8 Zoll | 20,0mm | 33,2mm | 24,5mm | 24,8mm | 20,2mm | 12,2g |
Herstellerinformationen:
CDC Pneumatics
30, Secheon-ro 1-gil, Dasa-eup
Dalseong-gun, Daegu
Republic of Korea
E-Mail: chumdancoupler@gmail.com
Telefon: +82 53 353 7501
Internet: https://fluidfit.net/eng/
Kontakt innerhalb EU:
Wassertechnik PRO
Queerenring 10B
04626 Schmölln
Deutschland
Telefon: +49 (0)3 44 91 - 58 16 11
E-Mail: post@wassertechnik.pro
| Hersteller: | FLUIDFIT |
| Kategorie: | Fluidtechnik |
| Artikelnummer: | SVZ170700 |
