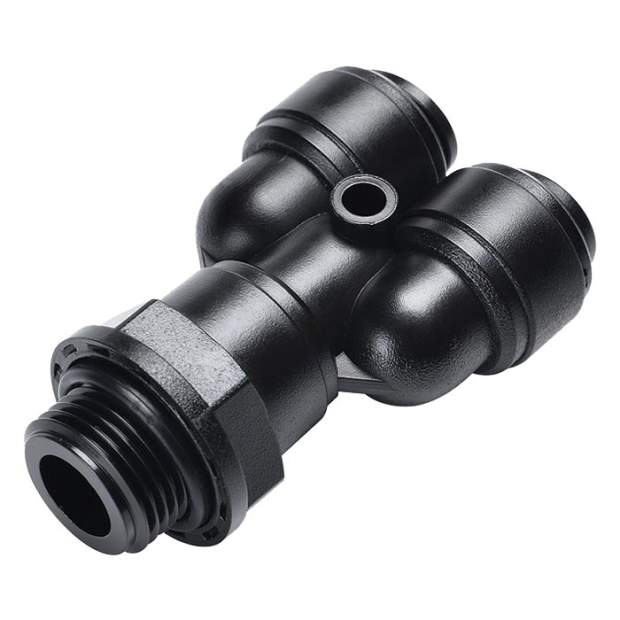

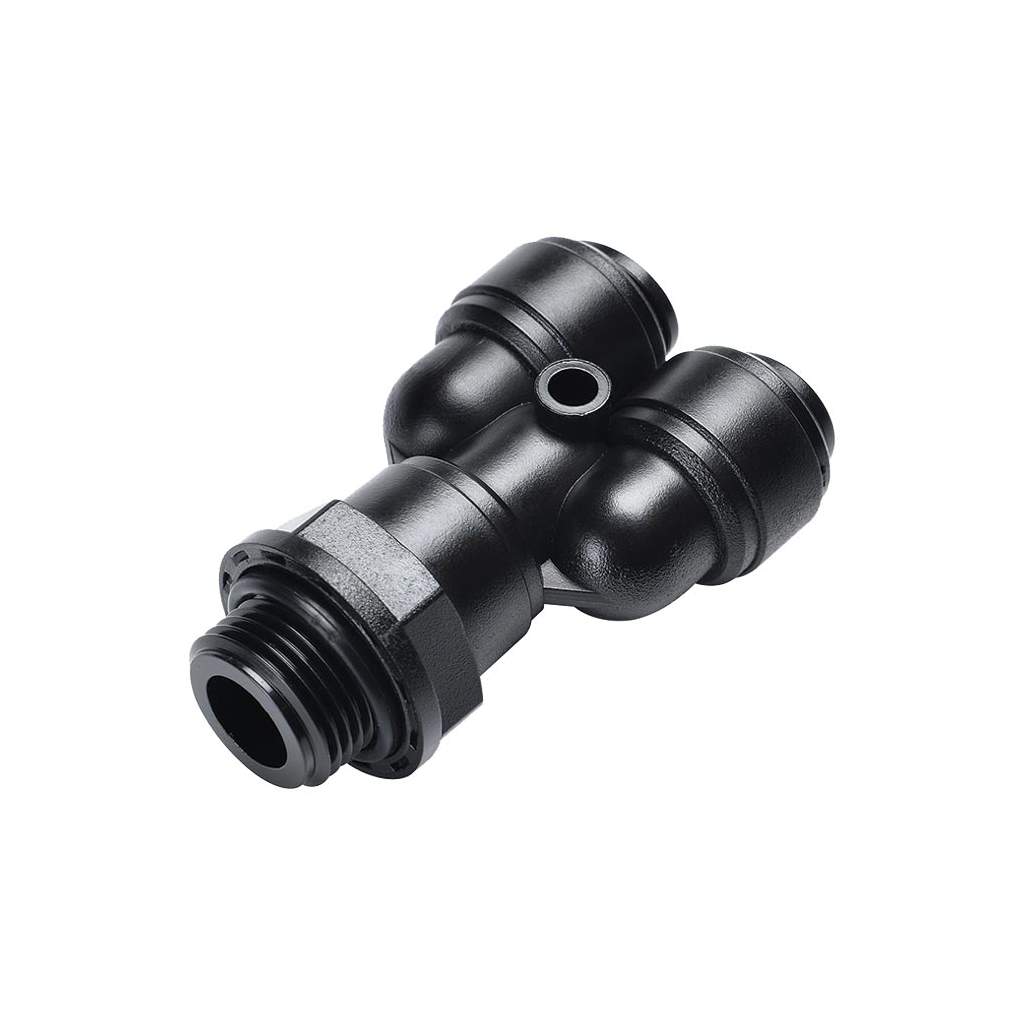

Die beiden paralellen Steckverbindungen sind auf dem Außengewinde drehbar gelagert und können so um 360° gedreht werden. Durch diese Beweglichkeit der Steckverbindungen wird die Montage erleichtert und es erfolgt eine Art Zugentlastung der eingsteckten Schläuche bzw. Stutzen. Am Gewindestutzen des Außengewindes (BSPP-Parallelgewinde) ist eine Dichtung aus EPDM verarbeitet, so dass die Schraubverbindung abgedichtet wrid.

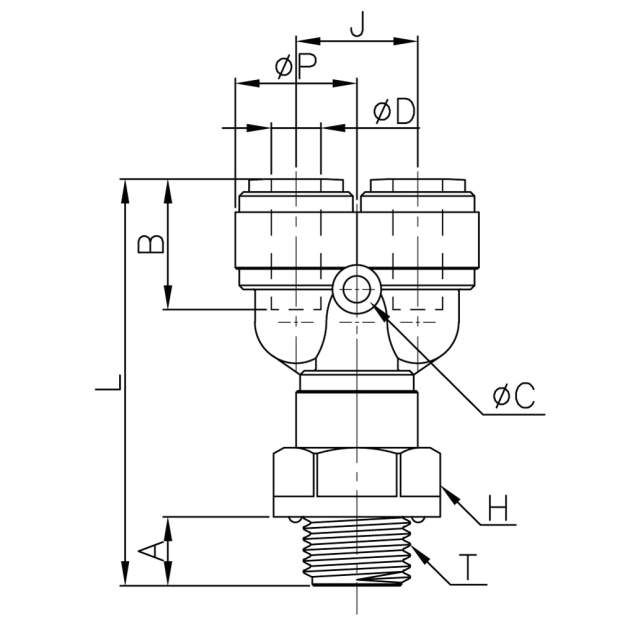

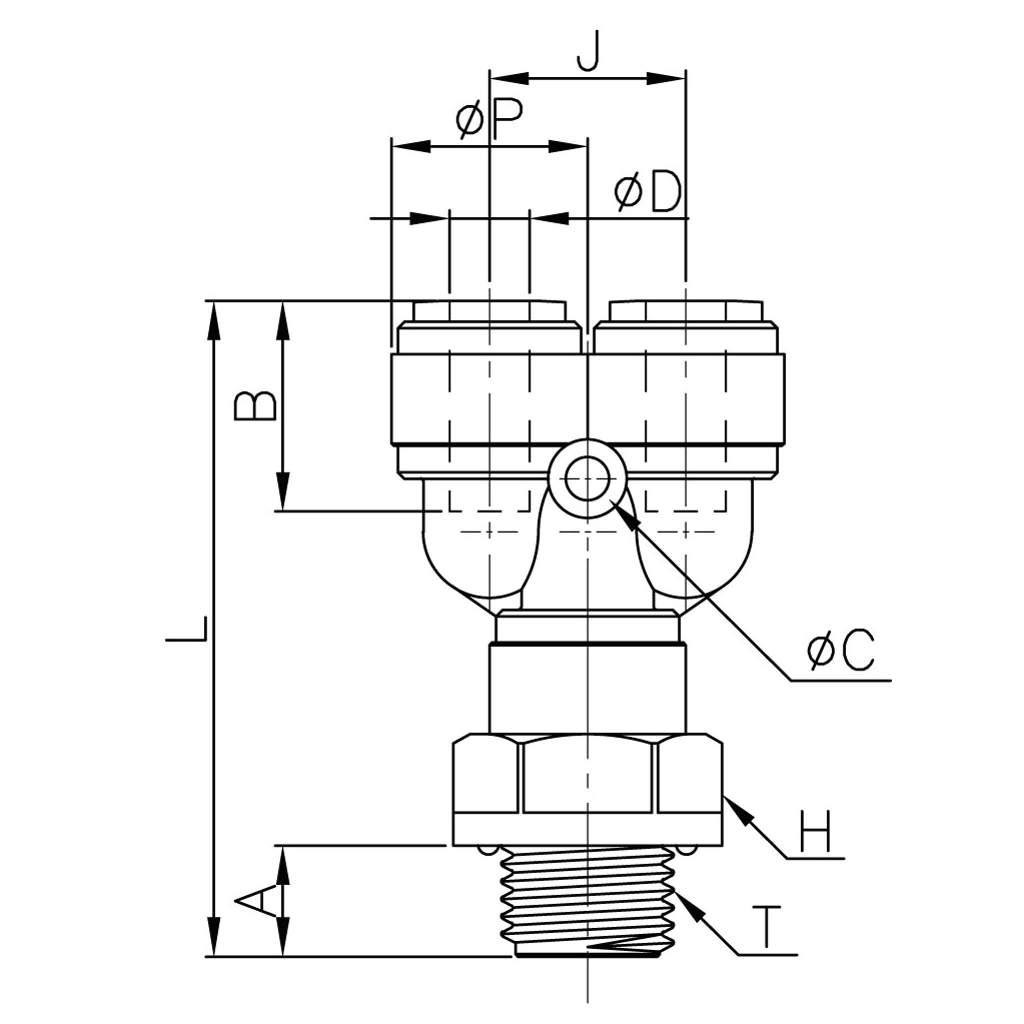

Varianten: | ØD | T (BSPP) | ØP | A | B | J | H | L | ØC | Gewicht |
---|---|---|---|---|---|---|---|---|---|---|
HRWT04G01B | 4mm | G1/8 Zoll | 13,8mm | 6,0mm | 14,7mm | 13,5mm | 15,0mm | 44,3mm | 3,3mm | 8,8g |
HRWT04G02B | 4mm | G1/4 Zoll | 13,8mm | 8,5mm | 14,7mm | 13,5mm | 18,0mm | 46,8mm | 3,3mm | 10,5g |
HRWT06G01B | 6mm | G1/8 Zoll | 15,5mm | 6,0mm | 16,1mm | 15,5mm | 17,0mm | 49,2mm | 3,3mm | 11,9g |
HRWT06G02B | 6mm | G1/4 Zoll | 15,5mm | 8,5mm | 16,1mm | 15,5mm | 18,0mm | 51,7mm | 3,3mm | 12,9g |
HRWT08G01B | 8mm | G1/8 Zoll | 17,6mm | 6,0mm | 17,5mm | 17,6mm | 18,0mm | 51,0mm | 4,5mm | 13,9g |
HRWT08G02B | 8mm | G1/4 Zoll | 17,6mm | 8,5mm | 17,5mm | 17,6mm | 18,0mm | 53,5mm | 4,5mm | 15,1g |
HRWT08G03B | 8mm | G3/8 Zoll | 17,6mm | 9,0mm | 17,5mm | 17,6mm | 22,0mm | 54,0mm | 4,5mm | 16,8g |
HRWT10G02B | 10mm | G1/4 Zoll | 20,0mm | 8,5mm | 20,1mm | 20,0mm | 22,0mm | 58,4mm | 4,5mm | 21,2g |
HRWT10G03B | 10mm | G3/8 Zoll | 20,0mm | 9,0mm | 20,1mm | 20,0mm | 22,0mm | 58,9mm | 4,5mm | 21,6g |
HRWT10G04B | 10mm | G1/2 Zoll | 20,0mm | 12,5mm | 20,1mm | 20,0mm | 26,0mm | 62,4mm | 4,5mm | 24,9g |
HRWT12G03B | 12mm | G3/8 Zoll | 23,0mm | 9,0mm | 24,7mm | 23,0mm | 26,0mm | 68,4mm | 4,5mm | 33,1g |
HRWT12G04B | 12mm | G1/2 Zoll | 23,0mm | 12,5mm | 24,7mm | 23,0mm | 26,0mm | 71,9mm | 4,5mm | 35,1g |
Hersteller: | FLUIDFIT |
Kategorie: | Steckverbinder |
Artikelnummer: | SVM400800 |
