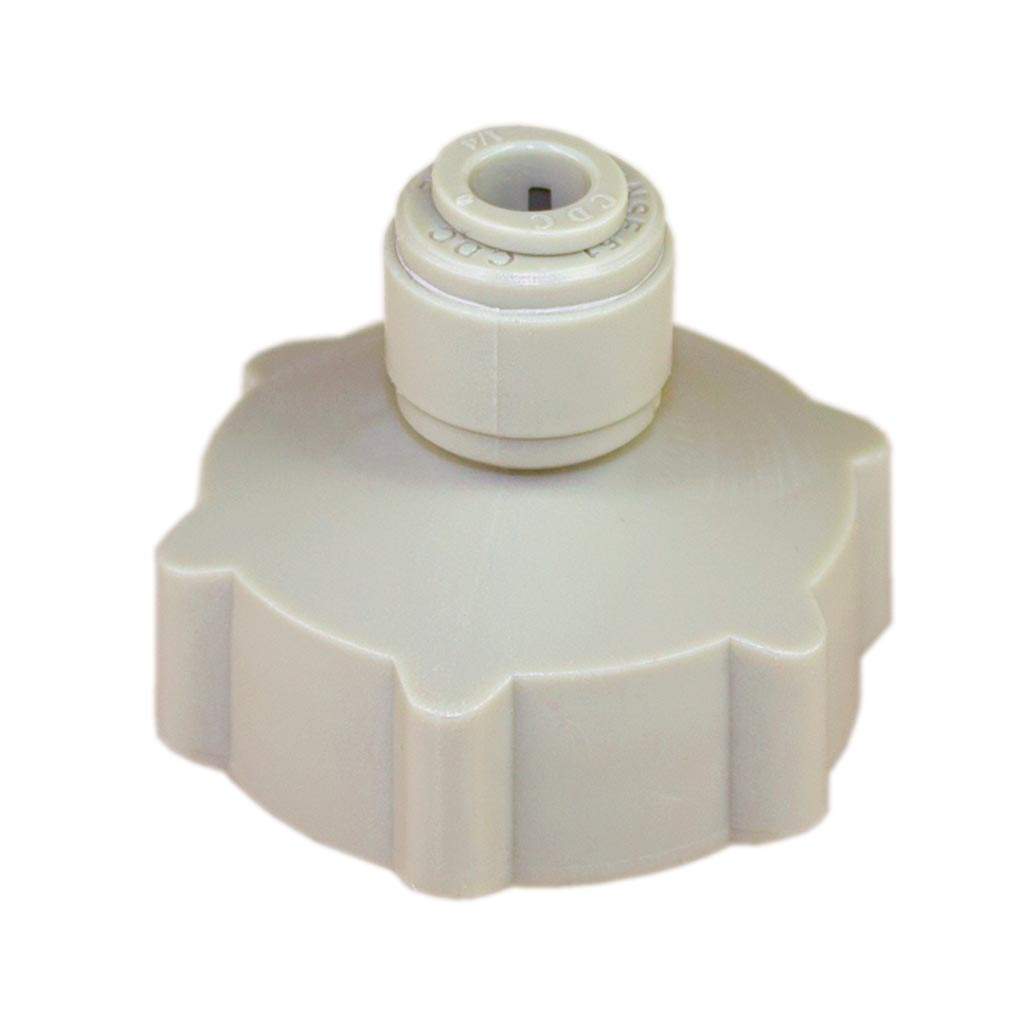

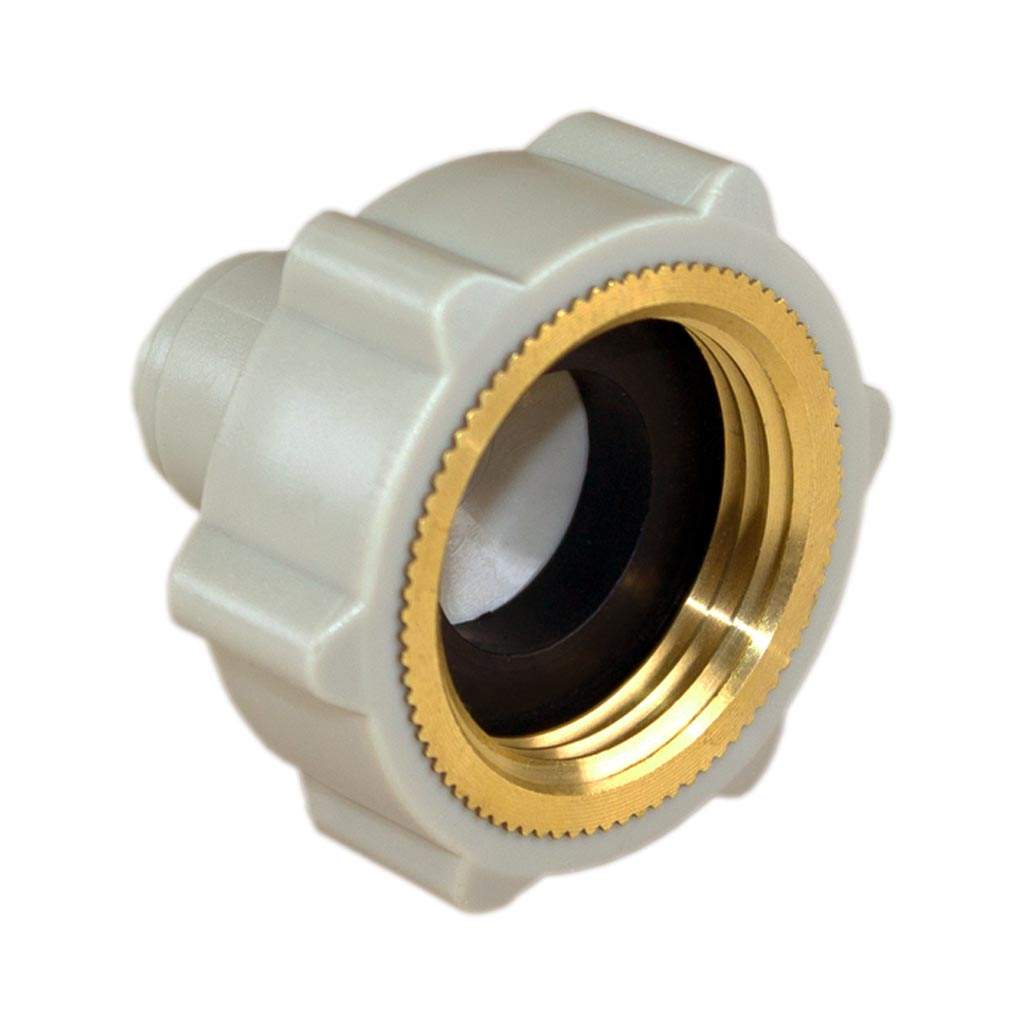

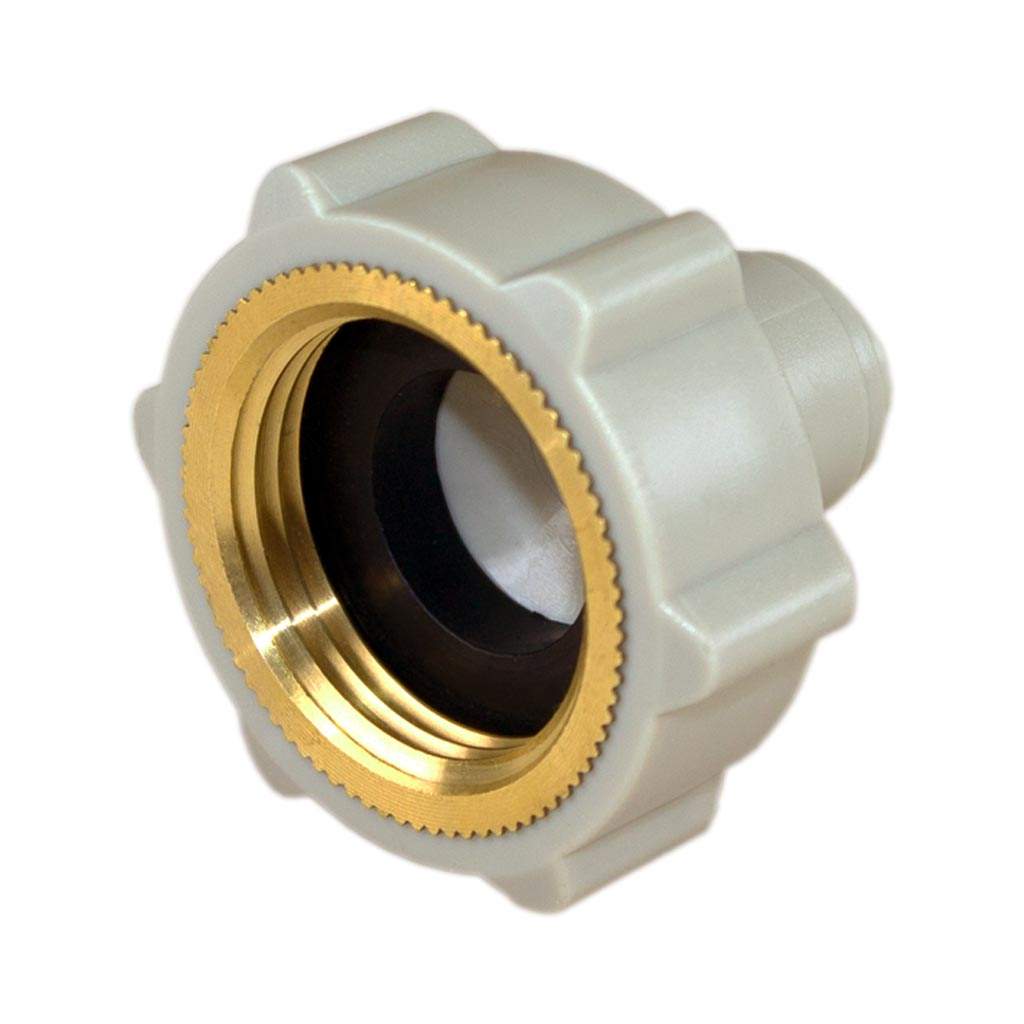

HCF-NH Aufschraub-Verbinder zöllig mit 3/4 Zoll IG Messing
Varianten und Abmessungen:
-
HCF1/4-NH06G: ØD = 1/4 Zoll, T (NH) = 3/4 Zoll, ØP = 15,5mm, L = 34,2mm, A = 7,0mm, B =16,9mm, H = 36,7mm, ØE = 41,6mm, Gewicht 34,6g
-
HCF5/16-NH06G: ØD = 5/16 Zoll, T (NH) = 3/4 Zoll, ØP = 20,0mm, L = 36,6mm, A = 7,0mm, B = 17,5mm, H = 36,7mm, ØE = 41,6mm, Gewicht 36,5g
- HCF3/8-NH06G: ØD = 3/8 Zoll, T (NH) = 3/4 Zoll, ØP = 20,0mm, L = 37,0mm, A = 7,0mm, B = 20,2mm, H = 36,7mm, ØE = 41,6mm, Gewicht 37,8g
