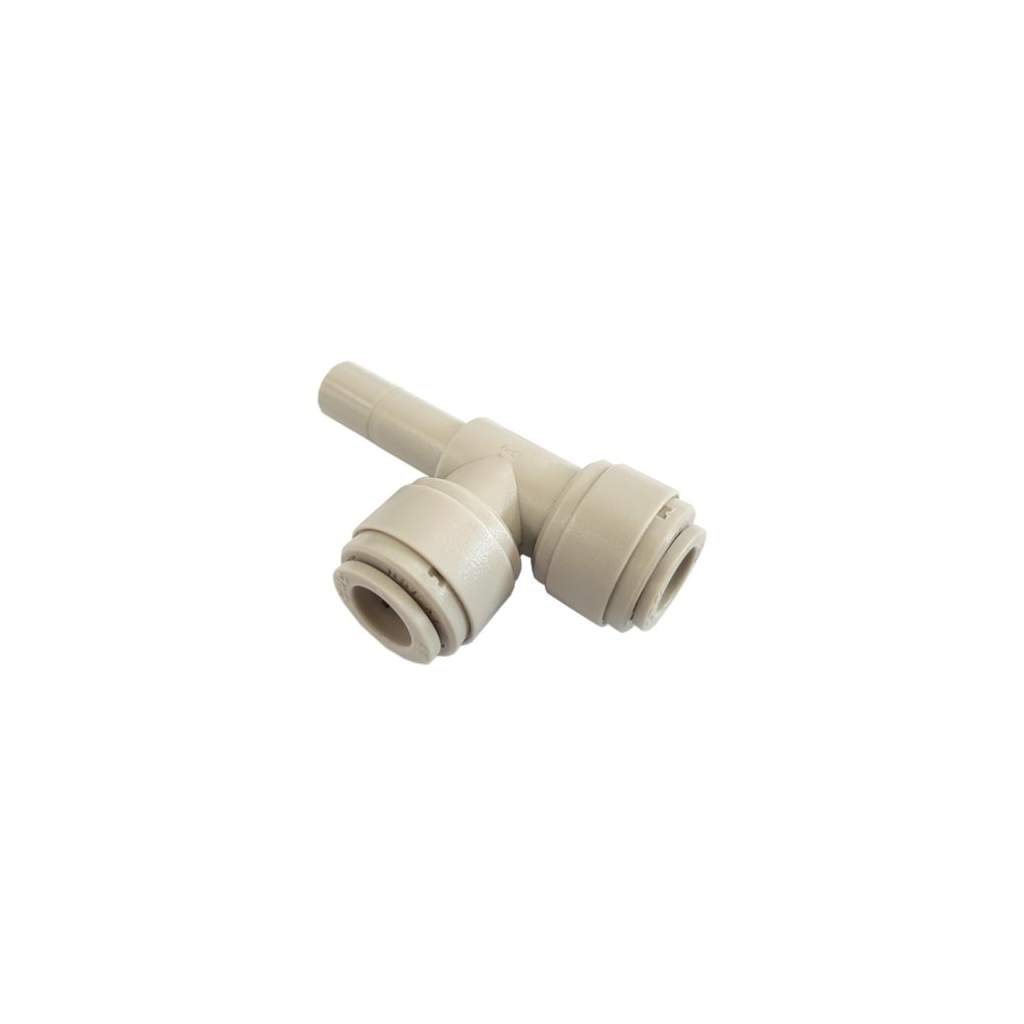

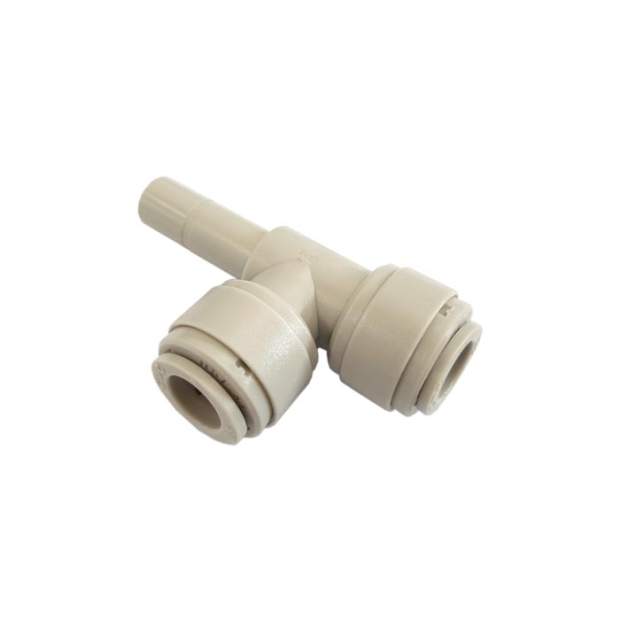

HSJ T-Verbinder zöllig mit seitlichem Stutzen zum Verbinden

Artikelnummer: SVZ120750

ab 2,08 €

inkl. 19% USt. , zzgl. Versand

sofort verfügbar

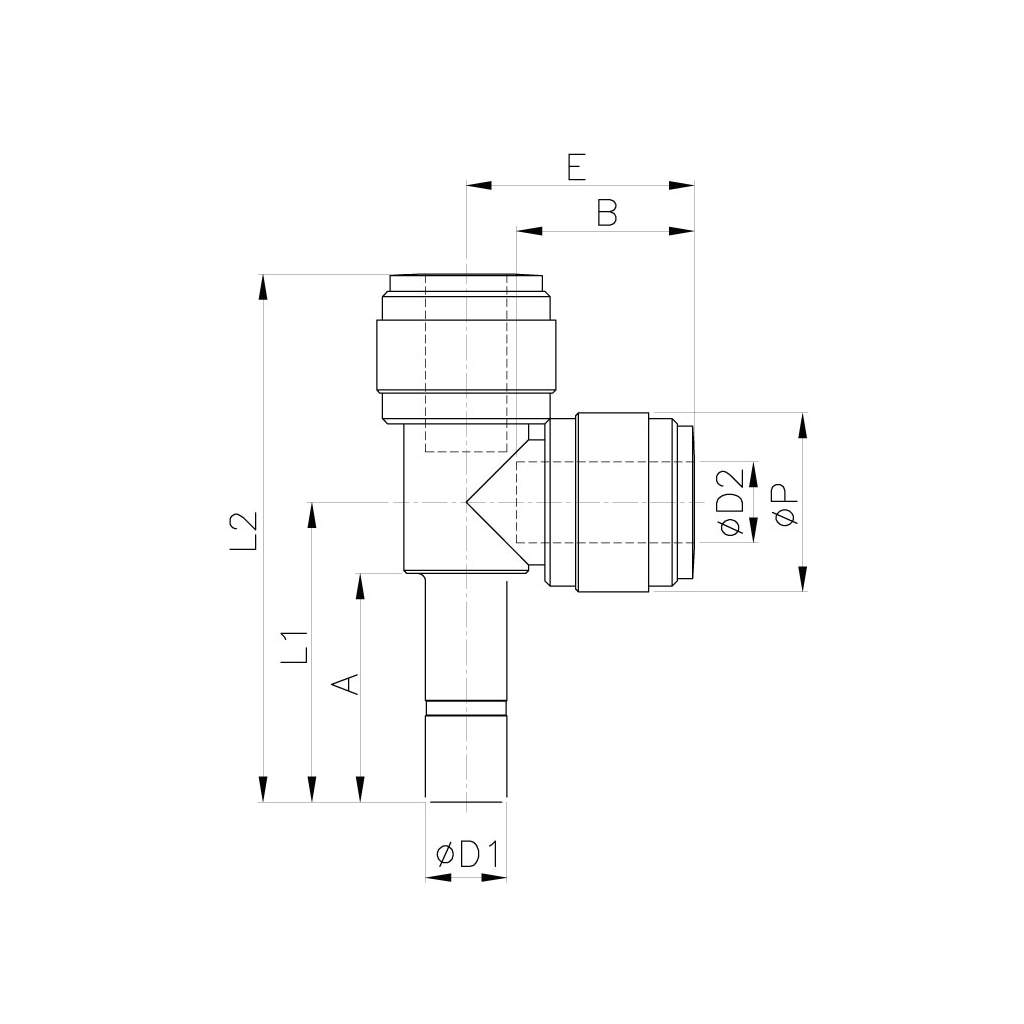

Varianten und Abmessungen:

HSJ5/32-5/32G: ØD1 = 5/32 Zoll, ØD2 = 5/32 Zoll, ØP = 13,2mm, A = 18,0mm, B = 14,7mm, E = 17,7mm, L1 = 23,5mm, L2 = 41,2mm, Gewicht = 5,7g
HSJ1/4-1/4G: ØD1 = 1/4 Zoll, ØD2 = 1/4 Zoll, ØP = 15,5mm, A = 21,0mm, B = 16,9mm, E = 21,0mm, L1 = 27,0mm, L2 = 48,0mm, Gewicht = 8,1g
HSJ5/16-5/16G: ØD1 = 5/16 Zoll, ØD2 = 5/16 Zoll, ØP = 17,6mm, A = 22,5mm, B = 17,5mm, E = 22,5mm, L1 = 29,5mm, L2 = 52,0mm, Gewicht = 10,6g
HSJ3/8-3/8G: ØD1 = 3/8 Zoll, ØD2 = 3/8 Zoll, ØP = 20,0mm, A = 24,8mm, B = 20,2mm, E = 25,9mm, L1 = 33,2mm, L2 = 59,1mm, Gewicht = 15,7g
HSJ1/2-1/2G: ØD1 = 1/2 Zoll, ØD2 = 1/2 Zoll, ØP = 23,6mm, A = 29,5mm, B = 25,1mm, E = 32,5mm, L1 = 39,4mm, L2 = 71,9mm, Gewicht = 23,2g
